New Model Search:

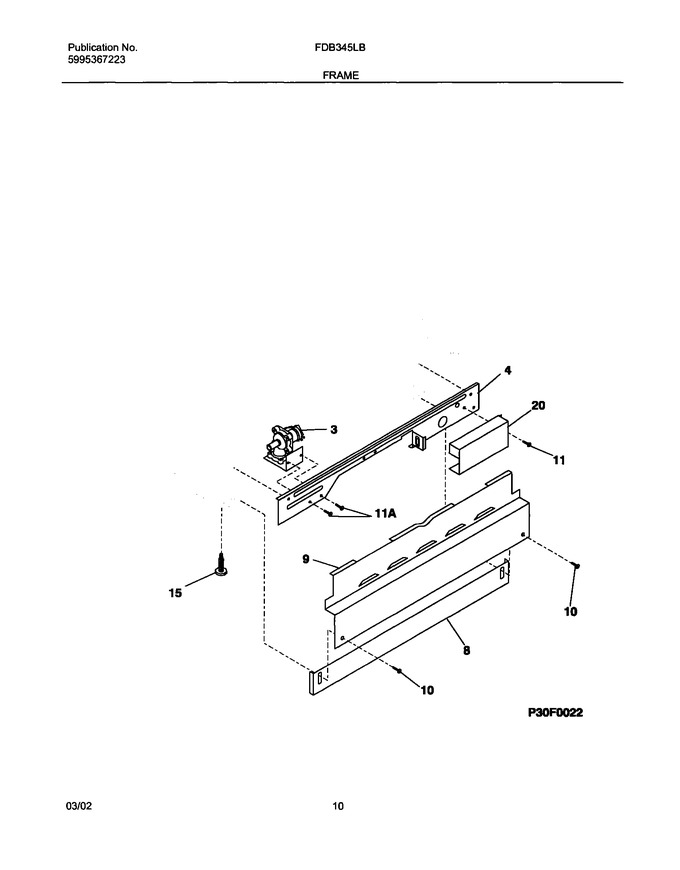

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 154637401 | Valve,water (Replaces: 154373301) |
|
Immediately | $ 21.36 | ||||
| 4 | 5304508587 | Brace,front Frame (Replaces: 154208701) |
|
$ 28.92 | |||||
| 8 | 154745503 | Toeplate-adjustable,black (Replaces: 154322903) |
|
Immediately | $ 15.75 | ||||
| 9 | 5304501484 | Kickplate Assy,black ,w/ Foam (Replaces: 154397203) |
|
Immediately | $ 51.08 | ||||
| 10 | 154419403 | Screw,no.8a X .375`` ,black (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 11 | 154320101 | Screw,serr ,no.8-18 X 3/8 |
|
- | |||||
| 15 | 154419301 | Screw,leveling |
|
$ 17.17 | |||||
| 20 | 154209601 | Cover-junction Box |
|
$ 39.80 | |||||
| 11A | 154200601 | Screw,no.10-16 X 3/8 |
|
$ 7.98 | |||||
| NI | 154041001 | Screw,plask No.1 ,10-10 X 9/16 |
|
- | |||||
| NI | 154200602 | Screw,10-16 X 3/8 ,hex |
|
$ 10.21 |
