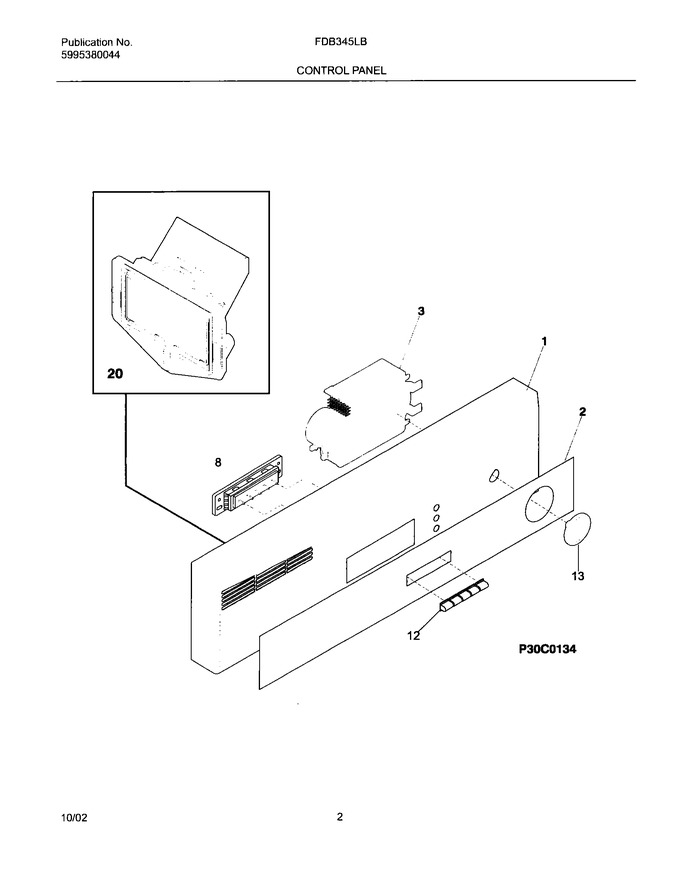

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368303		Panel-control,black				$ 34.60
2	154417503		Insert,control Panel ,black ,lowes		Appelez-nous	-
8	154334101		Switch		Appelez-nous	-
12	154236501		Pushbutton,black				$ 56.96
13	154239509		Knob,timer ,black				$ 50.09
20	154433001		Vent Assy,static Dry				$ 50.82
F3	154412901		Timer				$ 337.00
NI	154399002		Label,energy Guide		Appelez-nous	-
NI	154242201		Shield-switch		Appelez-nous	-
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154440201		Wiring Harness		Appelez-nous	-
NI	154131203		Shield-timer		Appelez-nous	-
NI	154095701		Screw,thread Rolling ,(2) ,timer				$ 10.34

    View Diagram in Separate Window       Print Part List
