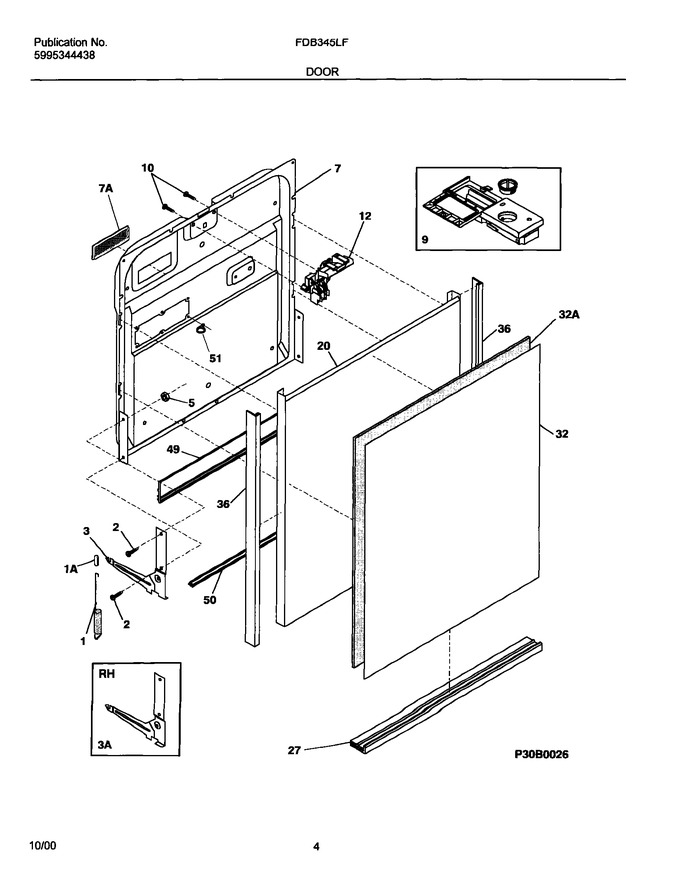

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154430601		Spring,door ,(2)   (Replaces: 154345902)			Immediately	$ 48.12
2	154093301		Screw-arm Assy			Immediately	$ 2.12
3	5304409912		Arm Assy,lh   (Replaces: 154325304)				$ 59.54
5	154079601		Nut-arm Assy				$ 0.41
7	154299002		Door-inner Assy		Appelez-nous	-
9	154294701		Screw,7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
9	154574401		Dispenser-det/rinse Aid   (Replaces: 154230101)			Immediately	$ 102.77
10	154103702		Screw-switch Mtg, (2)				$ 13.46
20	154327701		Mid Door Assy		Appelez-nous	-
27	154309503		Trim-door, Black, Bottom		Appelez-nous	-
32	5303943148		Insert-door Kit, Wht/alm & Blk/wht		Appelez-nous	-
36	154309303		Trim-door, Side, (2)				$ 57.86
49	809006501		Gasket-door,bottom   (Replaces: 154297602)			Immediately	$ 36.22
50	154211401		Support-door Hinge				$ 25.69
51	154320301		Clamp-wire,drip Loop				$ 62.69
1A	154325201		Spring Linkage			Immediately	$ 27.27
32A	154229001		Spacer-insert, Door		Appelez-nous	-
3A	5304409912		Arm Assy,rh   (Replaces: 154325303)				$ 59.54
7A	154226601		Liner Grate		Appelez-nous	-
F12	5304442175		Latch Assy,black   (Replaces: 154361203)			Immediately	$ 151.49
NI	154211501		Pin,arm		Appelez-nous	-
NI	154227806		Thermostat-temp Boost				$ 52.65
