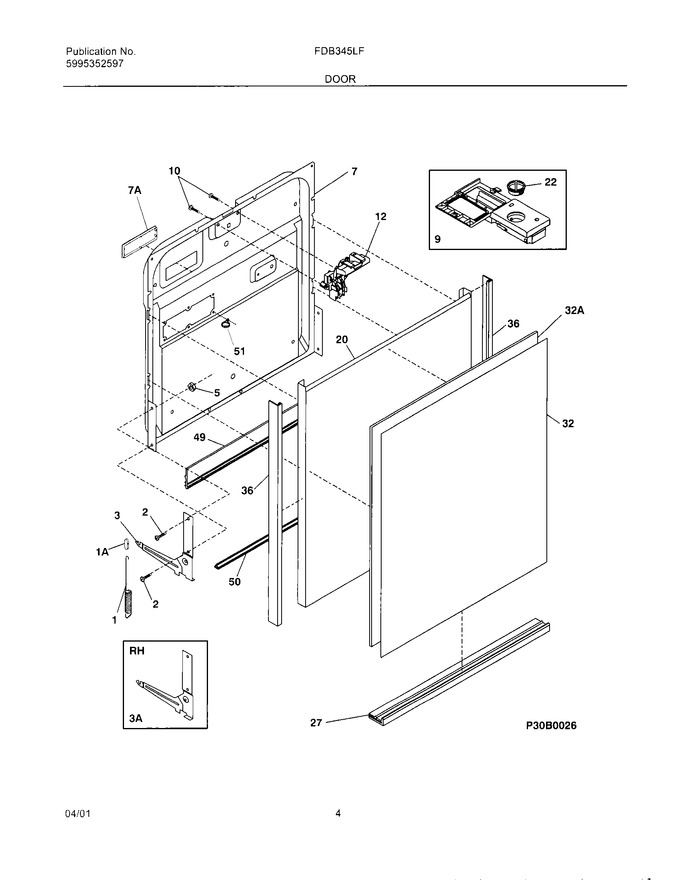

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154430601		Spring,door ,(2)   (Replaces: 154345902)			Immediately	$ 48.12
1	154325201		Spring Linkage,(2)			Immediately	$ 27.27
2	154093301		Screw,arm Assy ,(4)			Immediately	$ 2.12
3	5304409912		Arm Assy,lh   (Replaces: 154325304)				$ 59.54
3	5304409912		Arm Assy,rh   (Replaces: 154325303)				$ 59.54
5	154079601		Nut,arm Assy ,(4)				$ 0.41
7	154299002		Door-inner Assy		Appelez-nous	-
7	154226601		Liner Grate		Appelez-nous	-
9	154574401		Dispenser-det/rinse Aid,includes 22   (Replaces: 154230101)			Immediately	$ 102.77
10	154103702		Screw-latch Mtg, (2)				$ 13.46
12	5304442175		Latch Assy,white   (Replaces: 154361201)			Immediately	$ 151.49
20	154327701		Mid Door Assy		Appelez-nous	-
22	154388801		Cap,rinse Aid			Immediately	$ 26.03
27	154257601		Trim-door, White, Bottom		Appelez-nous	-
32	5303943148		Insert-door Kit, Wht/alm & Blk/wht		Appelez-nous	-
32	154229001		Spacer-insert, Door		Appelez-nous	-
36	154254201		Trim-door, White, Side		Appelez-nous	-
49	809006501		Gasket-door,bottom   (Replaces: 154297602)			Immediately	$ 36.22
50	154211401		Support-door Hinge				$ 25.69
51	154320301		Clamp-wire,drip Loop				$ 62.69
NI	154227806		Thermostat-temp Boost				$ 52.65
NI	154211501		Pin,arm		Appelez-nous	-
NI	154294701		Screw,7 Plas .375 ,(6) ,disp. Assy.				$ 9.22

    View Diagram in Separate Window       Print Part List
