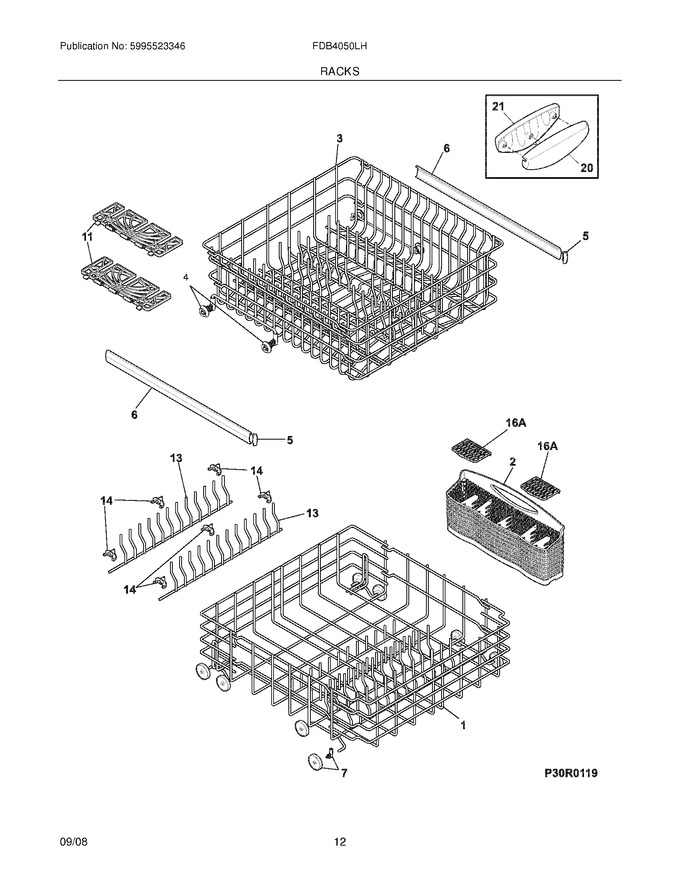

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140222632022 | Rack Assy,lower ,grey (Replaces: 154432604) |
|
Immediately | $ 134.18 | ||||
| 2 | 5304535382 | Basket,silverware ,grey (Replaces: 154556102) |
|
Immediately | $ 25.43 | ||||
| 3 | 154319529 | Rack Assy,upper |
|
$ 126.79 | |||||
| 4 | 154522902 | Wheel & Bushing Assy,grey ,upper Rack ,(8) |
|
$ 39.54 | |||||
| 5 | 5304506510 | Cap,slide ,grey ,(4) (Replaces: 5304440996) |
|
Immediately | $ 7.23 | ||||
| 6 | 154597801 | Slide,rack ,upper ,(2) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,grey ,lower Rack ,(8) (Replaces: 154174503) |
|
Immediately | $ 12.75 | ||||
| 11 | 5304532945 | Shelf,cup ,half Width ,grey (Replaces: 154436104) |
|
$ 7.42 | |||||
| 13 | 140054938026 | Fence,fold Down ,grey ,lower Rack ,(2) ,full Length (Replaces: 154425503) |
|
Immediately | $ 14.70 | ||||
| 14 | 154428402 | Bracket,fold Down Fence ,grey ,lower Rack,(6) |
|
Immediately | $ 25.05 | ||||
| 20 | 154530702 | Handle,pull ,grey ,front ,upper Rack |
|
$ 55.97 | |||||
| 21 | 5304504913 | Handle,pull ,grey ,rear ,upper Rack (Replaces: 154530902) |
|
$ 13.74 | |||||
| 16A | 154424303 | Cover,side Basket ,grey ,(2) ,silverware |
|
$ 39.59 |
