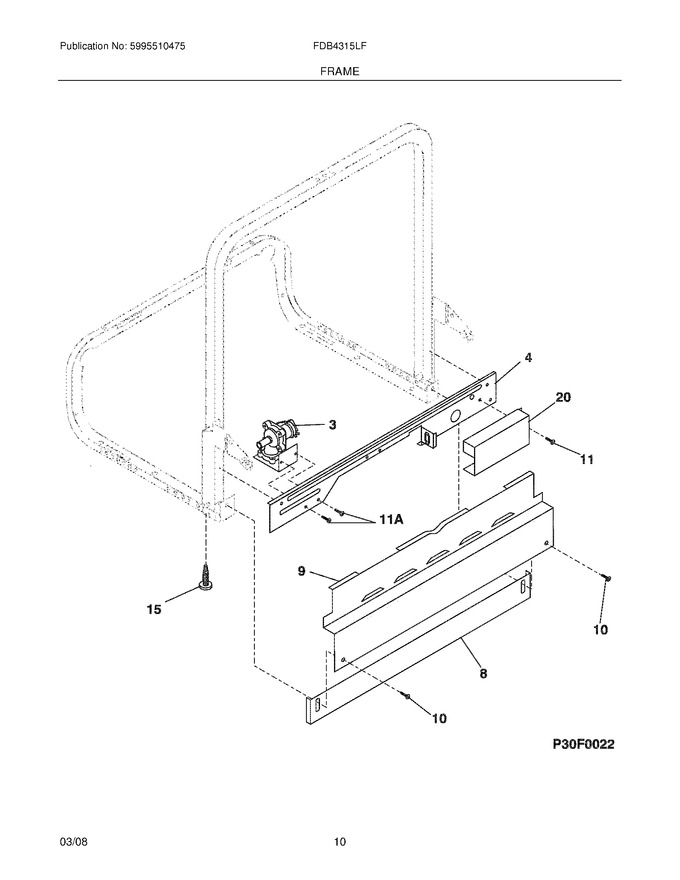

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	154595801		Brace,front Frame				$ 37.75
8	154745503		Toeplate,adjustable ,black   (Replaces: 154589403)			Immediately	$ 15.75
9	5304501484		Kickplate Assy,black   (Replaces: 154589503)			Immediately	$ 51.08
10	154419403		Screw,no.8a X .375`` ,black   (Replaces: 5300808658)				$ 13.10
11	134154100		Screw-no.10-32 X 3/8   (Replaces: 154200701)				$ 13.46
15	5304506540		Leg,leveling ,(4)   (Replaces: 154571101)			Immediately	$ 10.85
20	154758501		Cover,junction Box   (Replaces: 154597001)				$ 20.84
11A	154200601		Screw,no.10-16 X 3/8				$ 7.98
F3	154637401		Valve,water			Immediately	$ 21.36
NI	154528101		Insulation,toeplate				$ 33.39
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-
NI	808326801		Screw,no.8-18 X .375   (Replaces: 154409401)				$ 2.84
