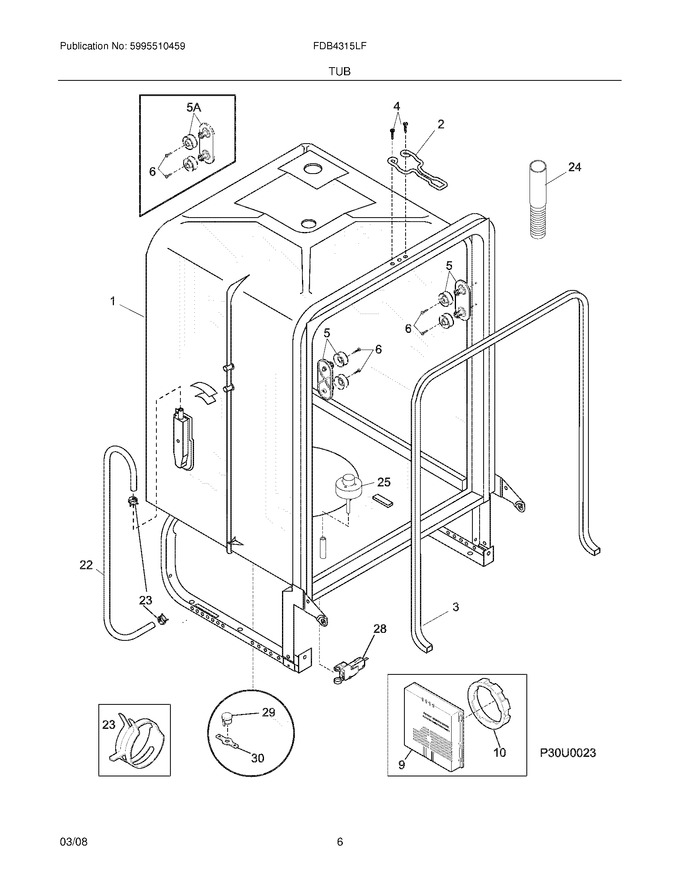

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304532796		Strike,door   (Replaces: 154544601)				$ 11.57
4	154200602		Screw,10-16 X 3/8 ,hex				$ 10.21
5	5304506916		Roller Assy,tub ,front ,(2)   (Replaces: 154579402)			Immediately	$ 33.00
6	154539801		Screw,tub Roller ,(8)   (Replaces: 154572801)				$ 12.76
9	5304467317		Vent Assy,blower ,grey   (Replaces: 154562802)			Immediately	$ 237.62
10	154562904		Bezel,vent ,gray   (Replaces: 154562902)				$ 6.89
22	5304523457		Tubing,water Inlet   (Replaces: 154446002)			Immediately	$ 14.03
23	5304538466		Clamp-tubing,(2)   (Replaces: 5303318539)				$ 2.31
28	154773201		Switch Assy,float   (Replaces: 154408701)			Immediately	$ 55.29
30	154241101		Retainer,thermostat				$ 3.62
5A	5304506916		Roller Assy,tub ,rear ,(2)   (Replaces: 154581102)			Immediately	$ 33.00
F1	154643302		Tub Assy,w/frame Parts ,& Vent Hole				$ 337.94
F24	807117001		Hose,drain   (Replaces: 154606701)			Immediately	$ 36.14
F25	5304532207		Float,grey   (Replaces: 154209702)			Immediately	$ 6.89
F29	5304525221		Thermostat,hi Limit   (Replaces: 154642901)			Immediately	$ 31.17
F3	8581548276014		Gasket,tub   (Replaces: 154561001)			Immediately	$ 26.30
NI	154641601		Insulation,blanket   (Replaces: 154635001)				$ 6.15
NI	5304520581		Insulation,back   (Replaces: 154635101)				$ 57.83
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-
NI	5300807270		Screw,(2) ,countertop Mtg.				$ 6.72
NI	154598801		Foam,tub ,(2)				$ 6.30
NI	154297701		Screw,retainer-thermo				$ 13.46
NI	154528701		Cabinet Seal Kit				$ 82.58
