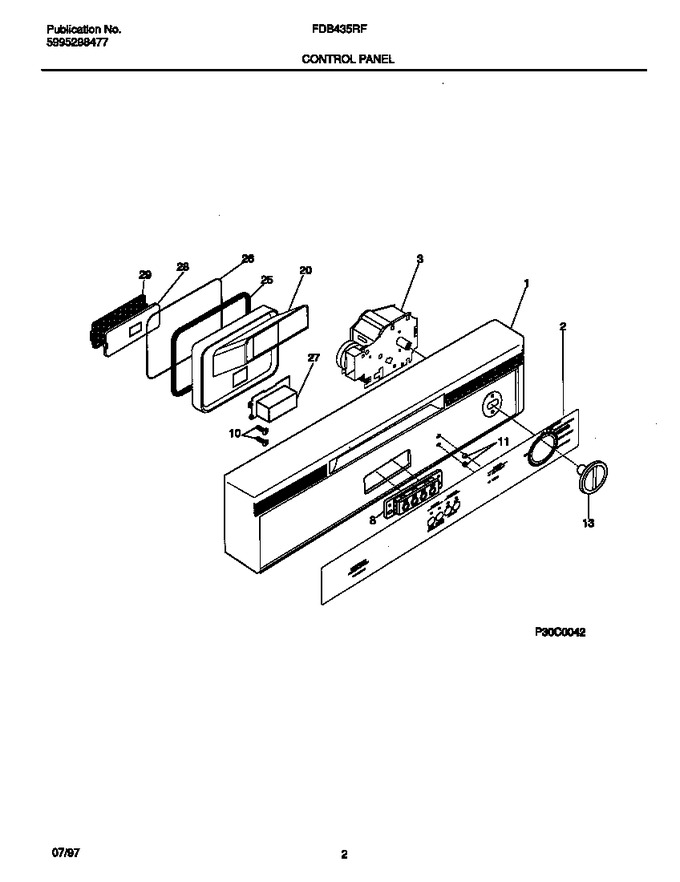

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222701		Panel-control, White		Appelez-nous	-
2	154236601		Insert-control Pnl		Appelez-nous	-
3	154095701		Screw-timer, Thread Rolling, (2) (not Illustrated)				$ 10.34
3	154295701		Timer		Appelez-nous	-
8	154215101		Switch-selector, 4b Tap Touch		Appelez-nous	-
8	154103702		Screw-switch Mtg, (2) (not Illustrated)				$ 13.46
10	154779601		Screw, (2)   (Replaces: 5303318719)				$ 1.42
11	154298301		Lens-light		Appelez-nous	-
13	154239501		Knob,timer ,white		Appelez-nous	-
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154287301		Seal-chamber		Appelez-nous	-
26	154240501		O-ring, Vent Dr Liner				$ 29.19
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*24840	154296002		Harness-wiring		Appelez-nous	-
*24841	154131203		Shield-timer		Appelez-nous	-
*24842	154248601		Shield,switch		Appelez-nous	-
*24843	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
