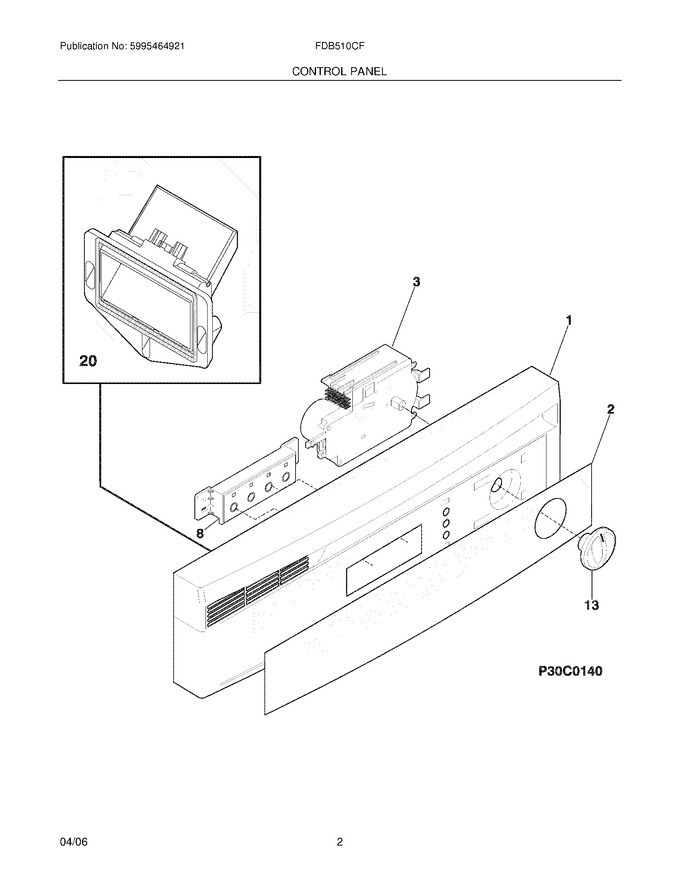

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154454203		Panel,control ,black				$ 76.60
2	154465303		Insert,control Panel ,black				$ 105.21
13	154426903		Knob,timer ,black				$ 42.05
20	154433001		Vent Assy,static Dry				$ 50.82
F3	154465901		Timer				$ 433.27
F8	154466001		Switch,selector ,4 Button				$ 198.40
NI	154546201		Wiring Harness				$ 127.63
NI	154248601		Shield,switch		Appelez-nous	-
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154540013		Energy Guide Label		Appelez-nous	-
NI	154095701		Screw,thread Rolling ,(2) ,timer				$ 10.34
NI	154131203		Shield-timer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
