Diagram # Part Number Description Series Availability Ships Price Add to Cart
21 12226401 Seal, Crisper Appelez-nous -
61 12227101 Knob, Control Appelez-nous -
62 WP67006908 Screw   (Replaces: M0230919) In-Stock Immediately $ 7.16

72 10972101 Spacer, Ice Rack Special Order $ 7.82

82 D7878825 Cover, Frz Cont Appelez-nous -
91 10688081 Ext, Crisper Appelez-nous -
92 D7689905 Knob, Control Appelez-nous -
101 12227201 Frame, Crisper Appelez-nous -
102 M0216531 Screw Appelez-nous -
111 12226703 Pan,crisper Appelez-nous -
131 12204804 Shelf, Crisper (glass) Appelez-nous -
141 10481001 Roller, Pan Special Order $ 10.99

151 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 9.25

161 M0310330 Plug, Button White Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

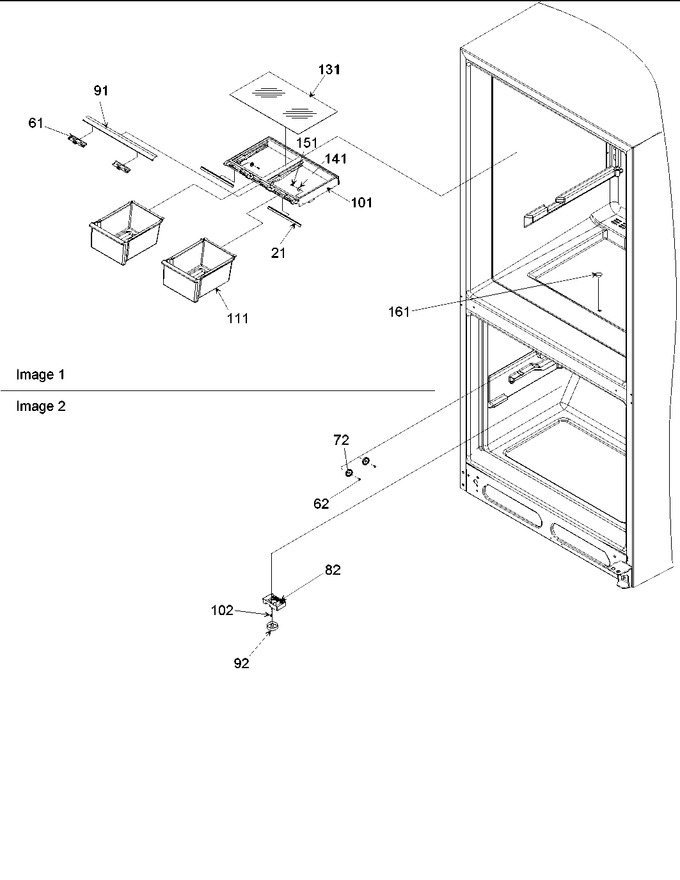

Diagram for BRD18V2S (BOM: P1326503W S)
