Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 154685201 Panel,control ,white Special Order $ 88.10

2 154465301 Insert,control Panel ,white Special Order $ 147.37

13 154426901 Knob,timer ,white Special Order $ 83.14

20 154433001 Vent Assy,static Dry Special Order $ 50.82

F3 154465901 Timer Special Order $ 433.27

F8 154466001 Switch,selector ,4 Button Special Order $ 198.40

FNI 154665501 Harness,wiring ,main Appelez-nous -
NI 154678512 Energy Guide Label Appelez-nous -
NI 154248601 Shield,switch Appelez-nous -
NI 154779601 Screw,mtg.   (Replaces: 5303318719) Special Order $ 1.42

NI 154436201 Screw,dry Duct ,(3) Appelez-nous -
NI 154681701 Shield,timer Appelez-nous -
NI 154095701 Screw,thread Rolling ,(2) ,timer Special Order $ 10.34


    View Diagram in Separate Window     Print Icon   Print Part List

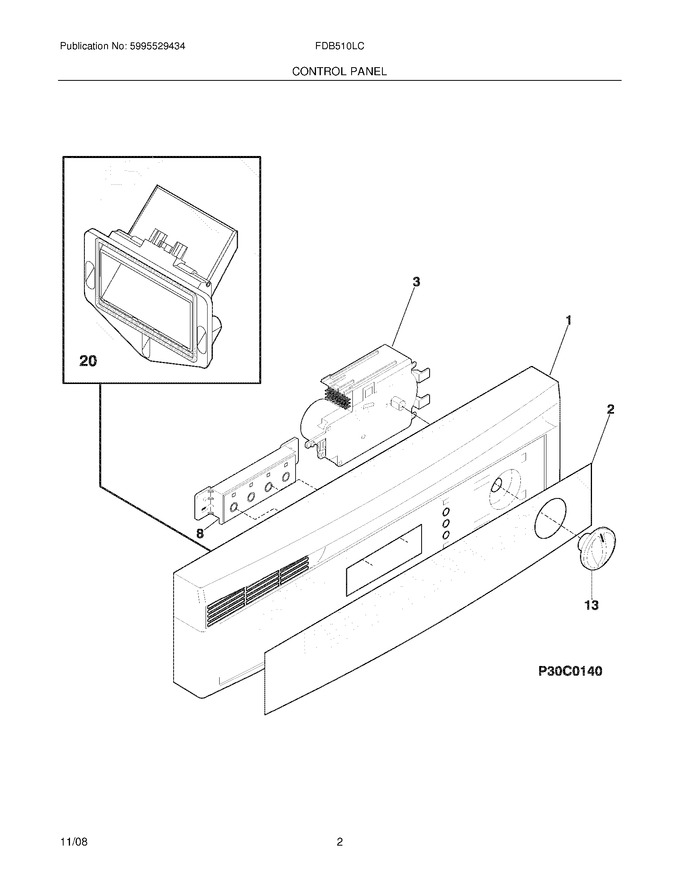

Diagram for FDB510LCS6
