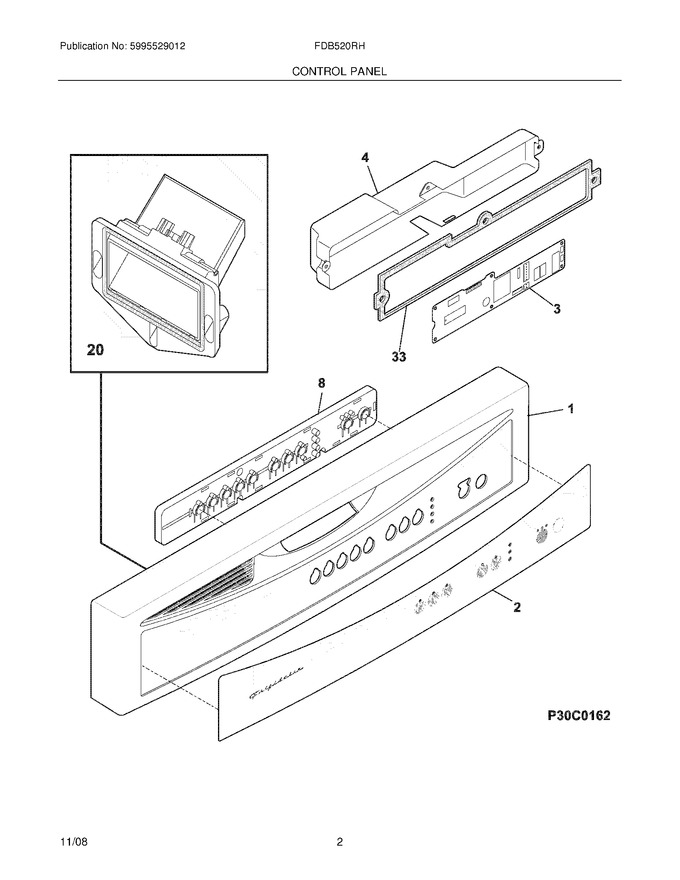

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154645201		Panel,control ,white				$ 40.12
2	154737601		Overlay,control Panel ,white				$ 50.75
4	154552101		Cover,control				$ 57.17
20	154433001		Vent Assy,static Dry				$ 50.82
33	154553501		Gasket,cover				$ 42.34
F3	5304512731		Control,board   (Replaces: 154718501)			Immediately	$ 138.42
F8	154774501		Switch Assembly,7 Button   (Replaces: 154737701)				$ 133.75
FNI	154738201		Harness,wiring ,switch ,to Main Harness		Appelez-nous	-
FNI	154646301		Harness,wiring ,main				$ 530.78
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154753101		Thermistor   (Replaces: 154227501)			Immediately	$ 24.80
NI	154678526		Energy Guide Label		Appelez-nous	-
NI	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
NI	808326801		Screw,no.8-18 X .375   (Replaces: 154409401)				$ 2.84
