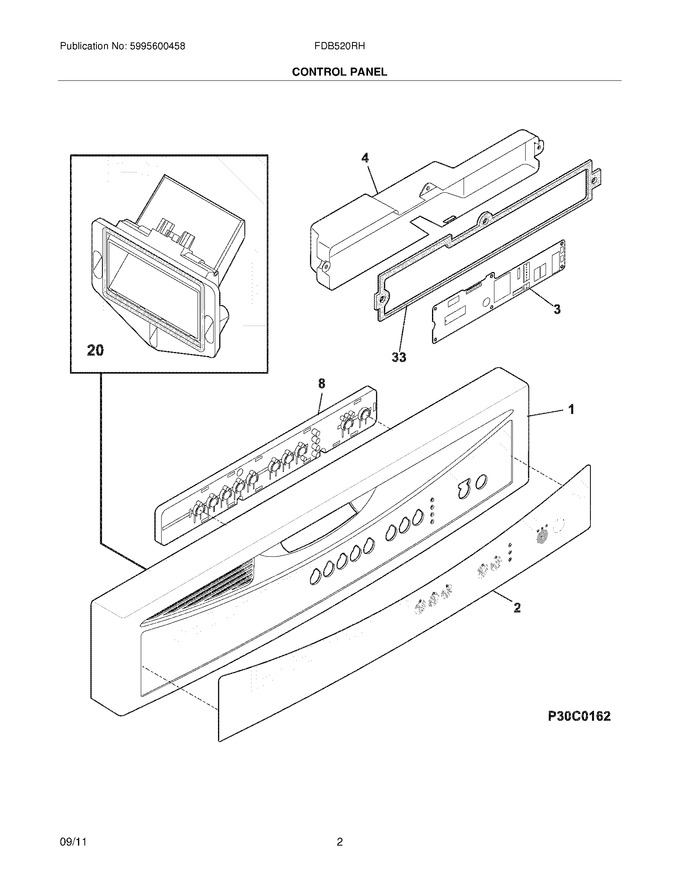

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154645201 | Panel,control ,white |
|
$ 40.12 | |||||
| 2 | 154737601 | Overlay,control Panel ,white |
|
$ 50.75 | |||||
| 4 | 154552101 | Cover,control |
|
$ 57.17 | |||||
| 20 | 154433001 | Vent Assy,static Dry |
|
$ 50.82 | |||||
| 33 | 154553501 | Gasket,cover |
|
$ 42.34 | |||||
| F3 | 5304512731 | Control (Replaces: 154783201) |
|
Immediately | $ 138.42 | ||||
| F8 | 154774501 | Switch Assembly,7 Button (Replaces: 154737701) |
|
$ 133.75 | |||||
| FNI | 154738101 | Harness,wiring ,main |
|
- | |||||
| NI | 154297701 | Screw,retainer-thermo |
|
$ 13.46 | |||||
| NI | 154753101 | Thermistor (Replaces: 154227501) |
|
Immediately | $ 24.80 | ||||
| NI | 154758439 | Energy Guide |
|
- | |||||
| NI | 808326801 | Screw,ground ,no.8-18 X .375 (Replaces: 154409401) |
|
$ 2.84 | |||||
| NI | 154436201 | Screw,dry Duct ,(3) |
|
- |
