New Model Search:

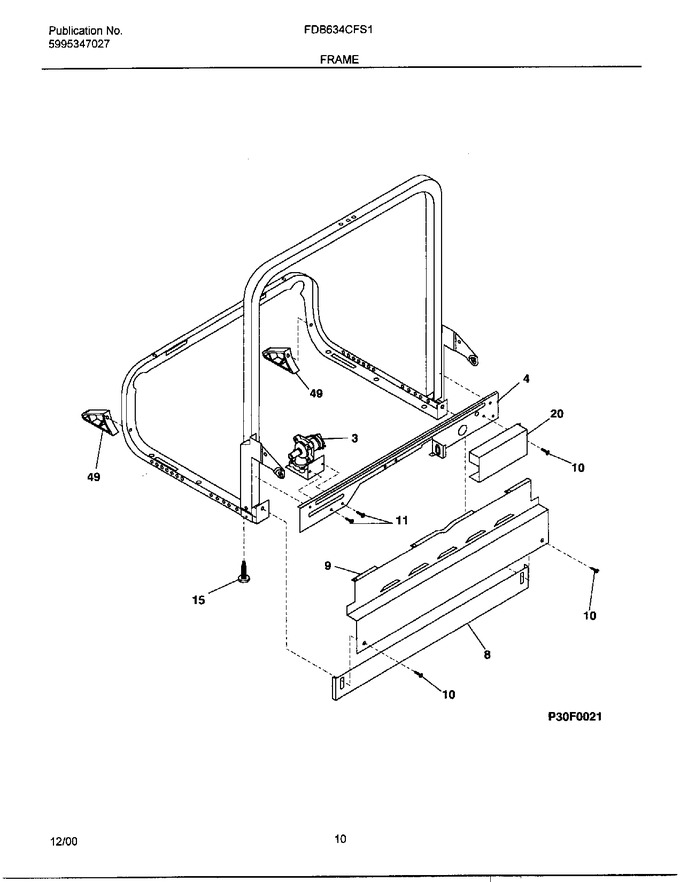

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304508587 | Brace-front (Replaces: 154208701) |
|
$ 28.92 | |||||
| 8 | 154745503 | Toeplate-adjustable (Replaces: 154322903) |
|
Immediately | $ 15.75 | ||||
| 9 | 5304501484 | Kickplate/baffle Assy, Black (Replaces: 154323003) |
|
Immediately | $ 51.08 | ||||
| 10 | 154419403 | Screw,8a X .375`` (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 11 | 154294701 | Screw,7 Plas .375 ,(6) ,disp. Assy. |
|
$ 9.22 | |||||
| 15 | 154210901 | Screw-leveling |
|
- | |||||
| 20 | 154209601 | Cover-junction Box |
|
$ 39.80 | |||||
| 49 | 154227401 | Guard-motor |
|
- | |||||
| F3 | 154637401 | Valve-water (Replaces: 154219601) |
|
Immediately | $ 21.36 | ||||
| NI | 5300808749 | Screw, C.r. Truss, 8 .625 |
|
- | |||||
| NI | 154200601 | Screw-10-16 X 3/8 |
|
$ 7.98 | |||||
| NI | 154041001 | Screw,plask 1 ,10-10 X 9/16 |
|
- |
