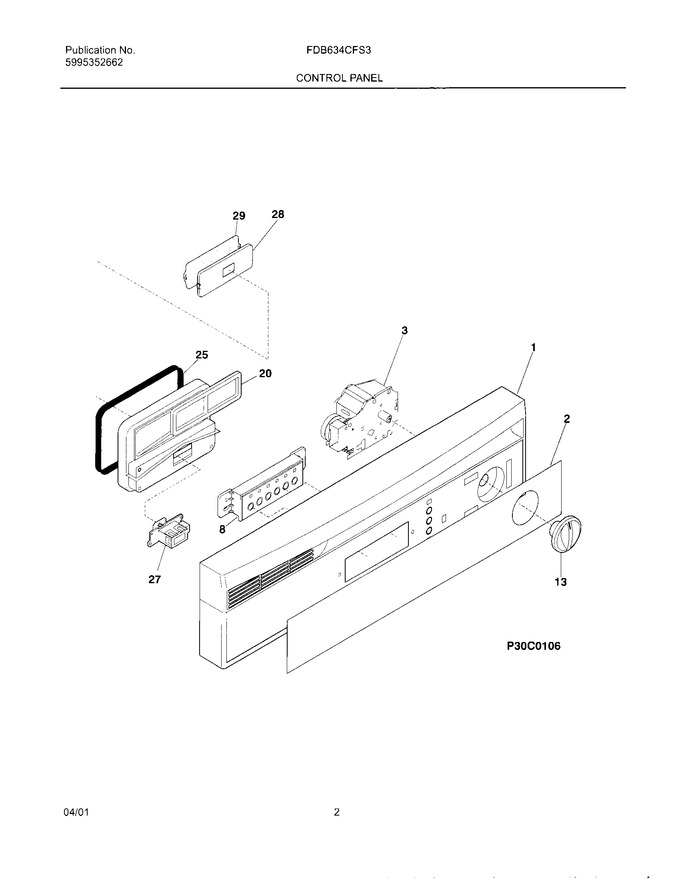

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368204		Panel-control,white				$ 215.04
2	154311101		Insert-control Pnl		Appelez-nous	-
3	154295701		Timer		Appelez-nous	-
8	154368601		Switch-selector,6 Button				$ 190.58
13	154239501		Knob,timer ,white		Appelez-nous	-
20	154345101		Vapor Chamber Assy,w/ Vent Gasket				$ 101.50
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
NI	154248601		Shield,switch		Appelez-nous	-
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154131203		Shield-timer		Appelez-nous	-
NI	154394701		Harness-wiring		Appelez-nous	-
NI	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
NI	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
