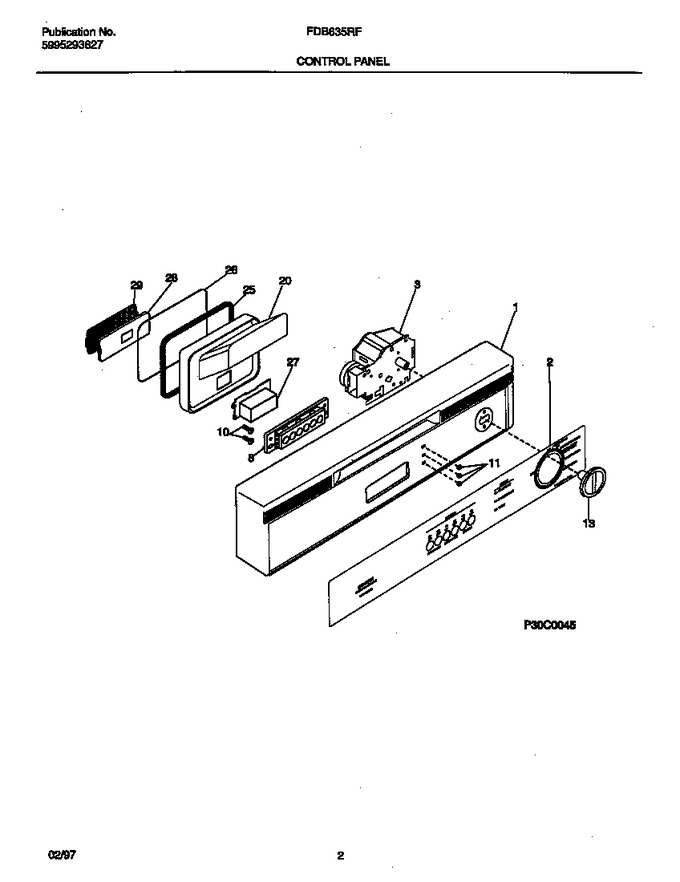

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222701		Panel-control, White		Appelez-nous	-
2	154236701		Insert-control Pnl, White		Appelez-nous	-
8	154214701		Switch-selector, 6 Button				$ 201.44
10	154779601		Screw-switch Mtg, (2)   (Replaces: 5303318719)				$ 1.42
11	154298301		Lens-light		Appelez-nous	-
13	154239501		Knob,timer ,white		Appelez-nous	-
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154287301		Seal-chamber		Appelez-nous	-
26	154240501		O-ring, Vent Dr Liner				$ 29.19
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*52520	154131203		Shield-timer		Appelez-nous	-
*52521	154248601		Shield,switch		Appelez-nous	-
*52522	154296101		Harness-wiring		Appelez-nous	-
3A	154295701		Timer		Appelez-nous	-
3B	154095701		Screw-timer, Thread Rolling, (2) (not Illustrated)				$ 10.34

    View Diagram in Separate Window       Print Part List
