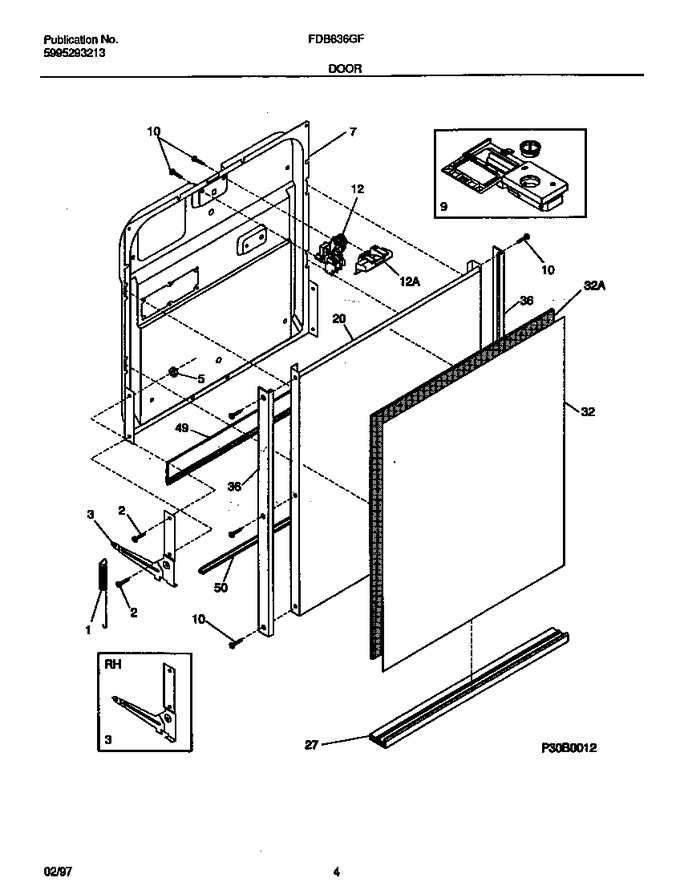

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154430601		Spring-door, (2)   (Replaces: 154226002)			Immediately	$ 48.12
2	154093301		Screw-arm Assy			Immediately	$ 2.12
5	154079601		Nut-arm Assy				$ 0.41
7	154299002		Door-inner Assy		Appelez-nous	-
9	154574401		Dispenser-det/rinse Aid   (Replaces: 154230101)			Immediately	$ 102.77
10	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
12	154293103		Handle-latch, Black		Appelez-nous	-
20	154210601		Mid Door Assy		Appelez-nous	-
27	154257603		Trim-door, Black, Bottom		Appelez-nous	-
32	154229102		Insert-door, Blk/alm		Appelez-nous	-
32	154229101		Insert-door, White		Appelez-nous	-
32	154229001		Spacer-insert, Door		Appelez-nous	-
36	154254203		Trim-door, Side		Appelez-nous	-
49	809006501		Gasket-door, Bottom   (Replaces: 154297601)			Immediately	$ 36.22
50	154211401		Support-door Hinge				$ 25.69
*72963	154200601		Screw-10-16 X 3/8				$ 7.98
*72964	5304538695		Insulation,door   (Replaces: 154253201)		Appelez-nous	-
*72965	5300808749		Screw-control Pnl Mtg		Appelez-nous	-
12A	5304442175		Latch Assy   (Replaces: 154211201)			Immediately	$ 151.49
12B	154103702		Screw-latch Mtg, (2) (not Illustrated)				$ 13.46
12C	154304301		Screw-latch Mtg, (2) (not Illustrated)				$ 7.51
3A	5304409912		Arm Assy, Rh   (Replaces: 154225901)				$ 59.54
3B	5304409912		Arm Assy, Lh   (Replaces: 154225902)				$ 59.54
3C	154211501		Pin-arm (not Illustrated)		Appelez-nous	-
3D	154298101		Washer, Arm (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
