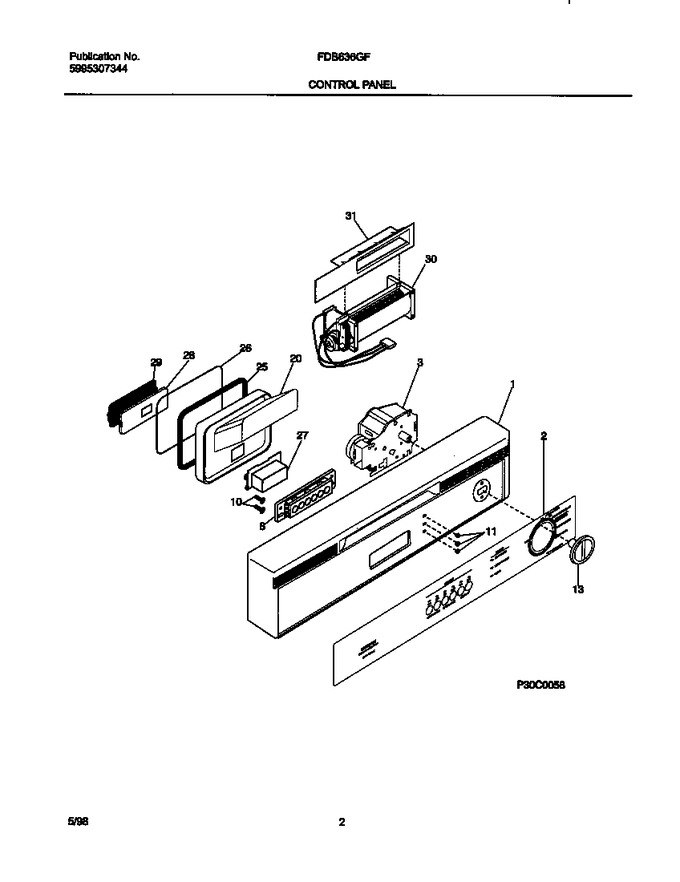

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222701		Panel-control, White		Appelez-nous	-
2	154290801		Insert-control Pnl, White				$ 127.84
3	154295701		Timer		Appelez-nous	-
8	154214701		Switch-selector, 6 Button				$ 201.44
10	154779601		Screw,(3) ,timer Mtg.   (Replaces: 5303318719)				$ 1.42
11	154298301		Lens-light		Appelez-nous	-
13	154239504		Knob-timer, White				$ 67.04
20	154228101		Chamber,vapor				$ 62.84
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
30	154226802		Blower,crossflow				$ 37.28
31	154228301		Duct,dynamic				$ 35.02
*34080	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
*34081	154131203		Shield-timer		Appelez-nous	-
*34082	154248601		Shield,switch		Appelez-nous	-
*34083	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*34084	154296202		Harness-wiring, Main		Appelez-nous	-
