View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

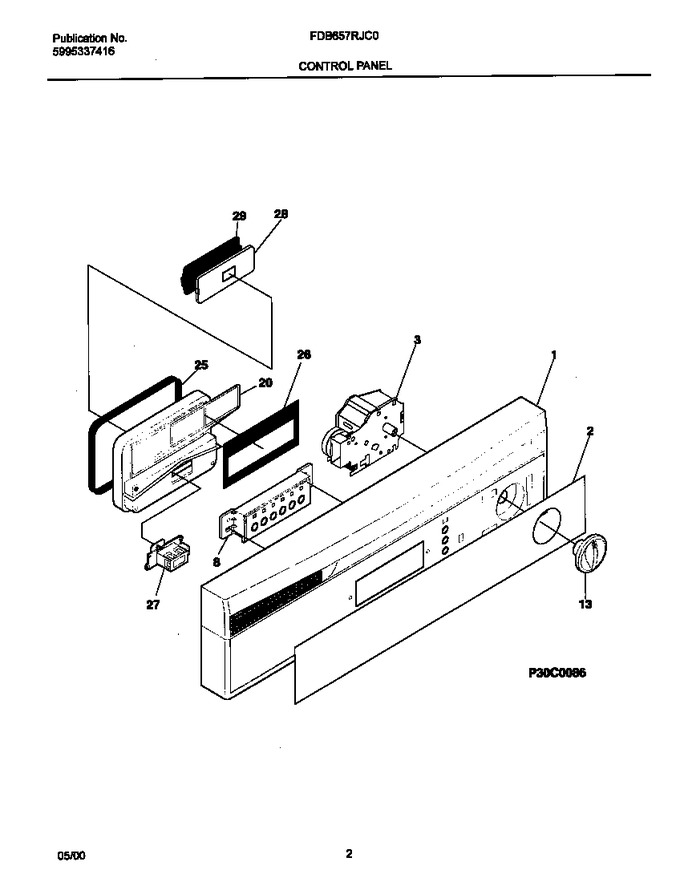

02 - Control Panel
03 - Door
04 - Tub
05 - Motor
06 - Frame
07 - Rack
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154368209 | Panel,control ,gun Metal |
|
- | |||||
| 2 | 154372405 | Insert-control Pnl,gun Metal |
|
- | |||||
| 3 | 154367901 | Timer |
|
- | |||||
| 8 | 154368601 | Switch-selector,6 Button |
|
$ 190.58 | |||||
| 13 | 154239506 | Knob-timer,black |
|
$ 45.83 | |||||
| 20 | 154283701 | Vapor Weldment Assy |
|
- | |||||
| 25 | 154303901 | Gasket-vent |
|
- | |||||
| 26 | 154229201 | Seal-chamber |
|
$ 12.81 | |||||
| 27 | 154226701 | Actuator,wax |
|
$ 65.46 | |||||
| 28 | 154226901 | Valve-vent |
|
- | |||||
| 29 | 154226403 | Gasket-valve |
|
- | |||||
| *38200 | 154095701 | Screw-timer, Thread Rolling, (2) |
|
$ 10.34 | |||||
| *38201 | 154131203 | Shield-timer |
|
- | |||||
| *38202 | 154248601 | Shield,switch |
|
- | |||||
| *38203 | 154779601 | Screw,mtg. (Replaces: 5303318719) |
|
$ 1.42 | |||||
| *38204 | 154283901 | Screw,8-10 ,3/8 Phillips |
|
$ 7.56 | |||||
| *38205 | 154367801 | Wiring Harness,main |
|
- |
