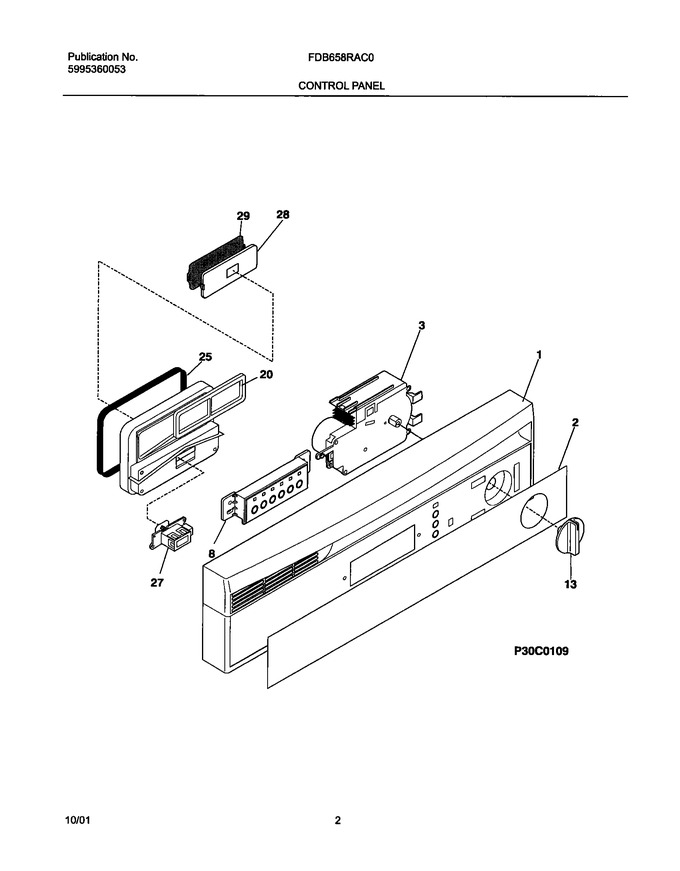

03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368206		Panel,control ,black				$ 80.53
2	154401503		Insert-control Pnl,black		Appelez-nous	-
13	154239509		Knob,timer ,black				$ 50.09
20	154283701		Vapor Weldment Assy		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
F3	154367901		Timer		Appelez-nous	-
F8	154368601		Switch-selector,6 Button				$ 190.58
NI	154248601		Shield,switch		Appelez-nous	-
NI	154131203		Shield-timer		Appelez-nous	-
NI	154095701		Screw,thread Rolling ,(2) ,timer				$ 10.34
NI	154391901		Harness-wiring		Appelez-nous	-
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
