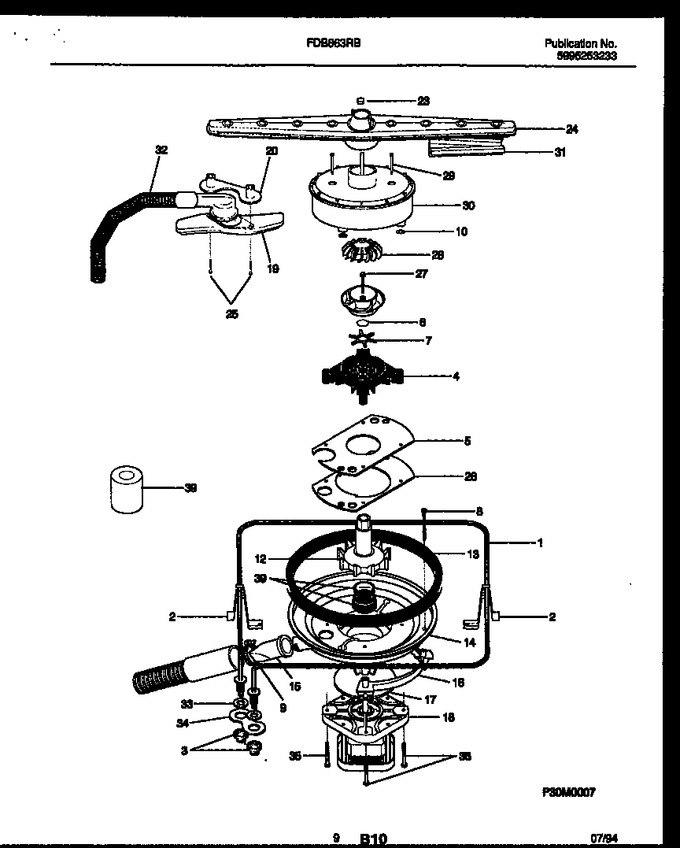

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809584		Heater				$ 222.23
2	5300809585		Heater Bracket (2)		Appelez-nous	-
3	154106202		Heater Nut (2)   (Replaces: 154106201)			Immediately	$ 18.32
4	5300809921		Spacer Plate				$ 12.39
5	5300809006		Pump Plate				$ 45.94
6	5300806521		O-ring				$ 32.42
7	5300809920		Macerator				$ 49.19
8	5300807268		Screw-10 X 1``(3)				$ 5.93
9	5300808186		Hose Clamp		Appelez-nous	-
10	5300809015		O-ring				$ 6.09
11	5300809016		O-ring				$ 5.83
12	5300809909		Lower Impeller				$ 71.56
13	5300809586		Pump Gasket				$ 85.64
14	5300809591		Pump Housing		Appelez-nous	-
15	5300809937		Check Valve				$ 74.71
16	5300809590		Pump Clamp				$ 47.93
17	5300809366		Watershield Assy				$ 2.26
18	5300809984		Motor		Appelez-nous	-
19	154119401		Upper Spray Arm				$ 59.85
20	154126401		Plate-upper Spray Arm Mounting		Appelez-nous	-
23	154190401		Spray Arm Nut				$ 21.00
24	154156602		Lower Spray Arm Assy				$ 58.91
25	5300809012		Screw				$ 8.03
26	5300809007		Pump Gasket				$ 18.06
27	5300806353		Screw 10-32 Hexagonal				$ 12.06
28	5300809918		Upper Impeller				$ 83.45
29	5300807359		Screw 10 X 1 3/4``		Appelez-nous	-
30	154158301		Filter Housing Assy		Appelez-nous	-
31	5300809938		Spray Arm Shield (2)				$ 37.05
32	154119301		Delivery Tube		Appelez-nous	-
33	5300809587		Washer - Heater (2)		Appelez-nous	-
34	154064901		Insulating Washer				$ 8.14
35	5300809022		Screw-motor Mtg (4)		Appelez-nous	-
37	5300803903		Seal Kit				$ 109.86
39	5300803923		Tool				$ 57.38
2A	5300810094		Screw-heater Bracket(2) (non-illustrated)		Appelez-nous	-
