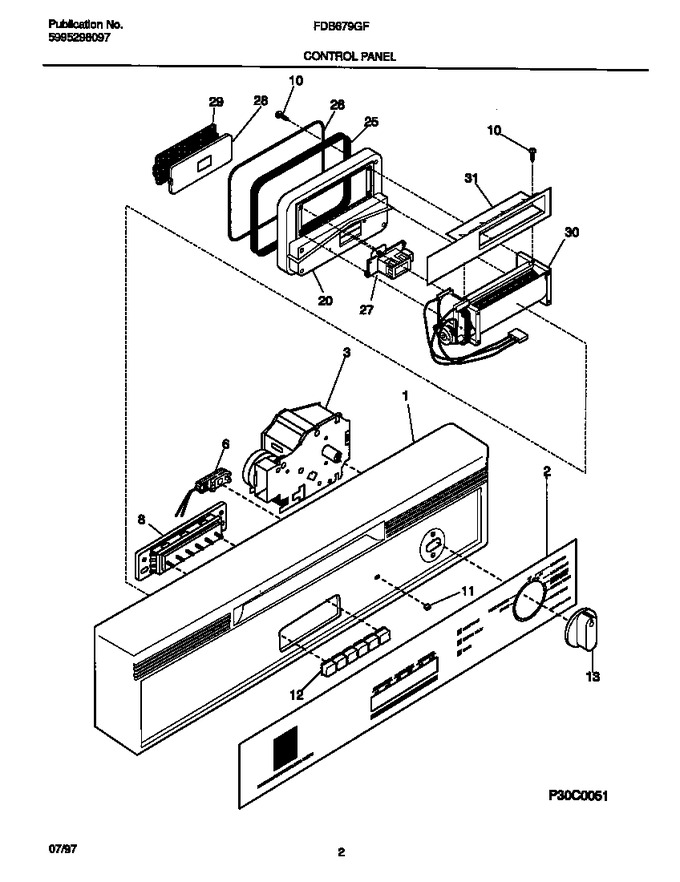

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222603		Panel-control, Black		Appelez-nous	-
2	154254603		Insert-control Pnl, Black				$ 125.84
6	5300809317		Light Assy		Appelez-nous	-
10	154779601		Screw, (2)   (Replaces: 5303318719)				$ 1.42
11	5300809036		Lens-light				$ 20.90
12	154253703		Pushbutton, Black, (6)		Appelez-nous	-
13	154253603		Knob-timer, Black		Appelez-nous	-
20	154228301		Duct,dynamic				$ 35.02
25	154287301		Seal-chamber		Appelez-nous	-
26	154240501		O-ring, Vent Dr Liner				$ 29.19
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
30	154226802		Blower,crossflow				$ 37.28
31	154228101		Chamber,vapor				$ 62.84
*00760	154131203		Shield-timer		Appelez-nous	-
*00761	154242201		Shield-switch		Appelez-nous	-
*00762	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
3A	154295701		Timer		Appelez-nous	-
3B	154095701		Screw-timer, Thread Rolling, (2) (not Illustrated)				$ 10.34
8A	154214601		Switch-selector, 6 Button		Appelez-nous	-
8B	154103702		Screw-switch Mtg, (2) (not Illustrated)				$ 13.46
