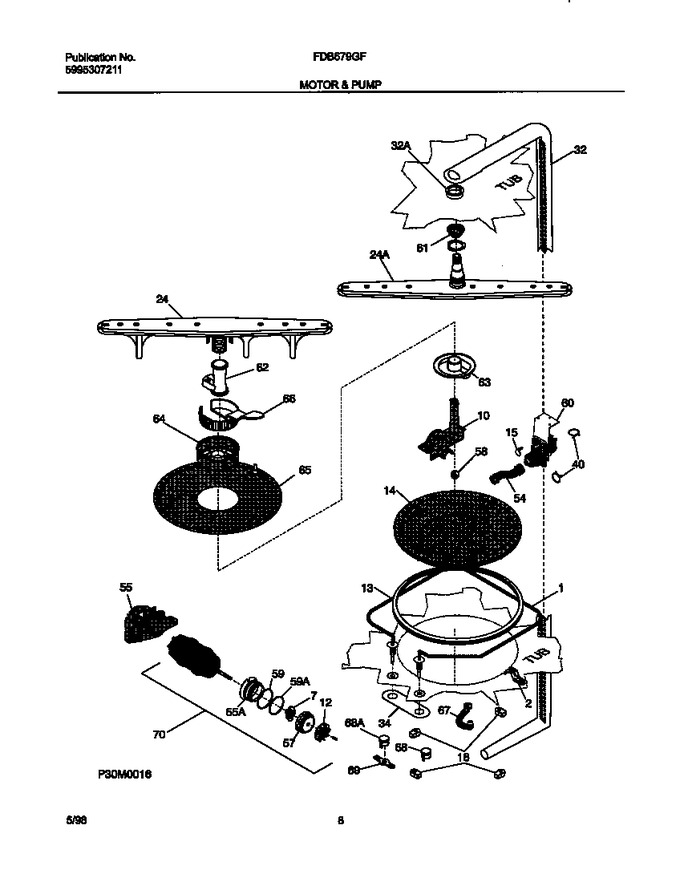

05 - Motor & Pump


06 - Frame


07 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154665201		Heater   (Replaces: 154247601)			Immediately	$ 78.97
2	154211001		Bracket-heater				$ 32.35
7	154245901		Macerator				$ 7.35
10	807145201		Cover-volute   (Replaces: 154245501)			Immediately	$ 19.90
12	154245801		Impeller				$ 17.73
13	154246801		Gasket-sump				$ 52.17
14	154245401		Housing-sump		Appelez-nous	-
15	154246701		Check Valve				$ 40.01
16	154246501		Retainer, Sump		Appelez-nous	-
24	5304517203		Spray Arm-lower, W/cover   (Replaces: 154250901)			Immediately	$ 41.76
24	154313601		Spray Arm-center			Immediately	$ 44.65
32	154251701		Tube,delivery		Appelez-nous	-
32	154251601		Gasket-delivery Tube		Appelez-nous	-
34	154064901		Washer-insulating				$ 8.14
54	154234401		Hose,connector				$ 68.68
55	154246201		Bracket-motor,front		Appelez-nous	-
55	154245601		Bracket-motor		Appelez-nous	-
56	154245706		Motor,circulation		Appelez-nous	-
57	154246001		Barrel,front				$ 46.88
58	154246402		Check Ball			Immediately	$ 55.99
59	154246901		O-ring,rear			Immediately	$ 56.70
59	154247001		O-ring,front			Immediately	$ 56.70
60	154247501		Drain-pump Assy		Appelez-nous	-
61	154250201		Nozzle, 3rd Level, Spray Arm		Appelez-nous	-
62	5304532235		Support-spray Arm   (Replaces: 154294101)			Immediately	$ 7.33
63	5304532205		Base,soil Director   (Replaces: 154252201)			Immediately	$ 13.74
64	5304532205		Filter-soil Director   (Replaces: 154252301)			Immediately	$ 13.74
65	154283004		Filter Assy				$ 394.43
66	154252701		Trap,glass			Immediately	$ 56.57
67	154246601		Hose-drain, Shunt		Appelez-nous	-
68	154227805		Thermostat-temp Assure				$ 169.21
70	154291504		Motor & Pump Assy,includes 7, 12 , 57a, 59 & 59a, 55a,		Appelez-nous	-
*38661	154106202		Nut,heater ,(2)   (Replaces: 154106201)			Immediately	$ 18.32
*38662	154289801		Shield-heater Terminal				$ 7.33
*38663	5300810094		Screw-heater Bracket		Appelez-nous	-
*38664	154282701		Screw,ss Impeller				$ 2.54
*38665	154252001		Nut-spray Arm				$ 40.45
*38666	154246101		Barrel,rear				$ 27.67
*38667	154234501		Bracket,motor ,drain		Appelez-nous	-
*38668	154200601		Screw-10-16 X 3/8				$ 7.98
*38669	154241101		Retainer,thermostat				$ 3.62
*38670	154247101		Clamp, Drain Side		Appelez-nous	-
*38671	154247201		Clamp, Intake		Appelez-nous	-
*38672	154247401		Clamp, Connector Pump		Appelez-nous	-
*38673	154287201		Screw, Motor Mounting		Appelez-nous	-
*38674	154329001		Cover-fan 24q		Appelez-nous	-
*38675	5303316032		Screw,truss Ss ,8 .625				$ 10.45
*38676	154227806		Thermostat-temp Boost				$ 52.65
40A	154611101		Clamp-hose   (Replaces: 154106801)				$ 12.05
40B	154348401		Clamp, Drain Pump   (Replaces: 154247301)				$ 32.96
