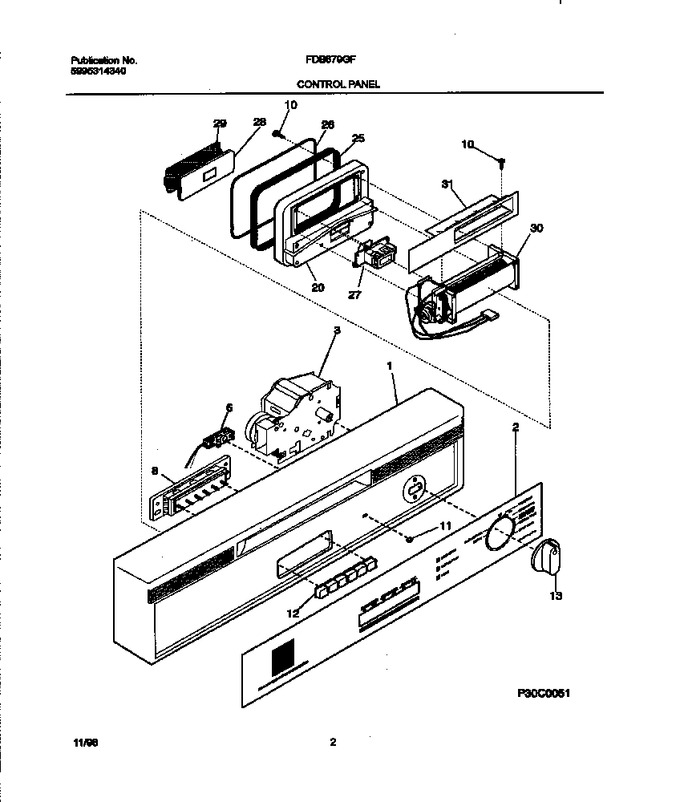

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222603		Panel-control, Black		Appelez-nous	-
2	154254603		Insert-control Pnl, Black				$ 125.84
3	154295701		Timer		Appelez-nous	-
6	5300809317		Light Assy		Appelez-nous	-
8	154214601		Switch-selector, 6 Button		Appelez-nous	-
10	154779601		Screw,(3) ,timer Mtg.   (Replaces: 5303318719)				$ 1.42
11	5300809036		Lens-light				$ 20.90
12	154253703		Pushbutton, Black, (6)		Appelez-nous	-
13	154253603		Knob-timer, Black		Appelez-nous	-
20	154228301		Duct,dynamic				$ 35.02
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
30	154226802		Blower,crossflow				$ 37.28
31	154228101		Chamber,vapor				$ 62.84
*77760	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
*77761	154131203		Shield-timer		Appelez-nous	-
*77762	154242201		Shield-switch		Appelez-nous	-
*77763	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*77764	154296202		Harness-wiring, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
