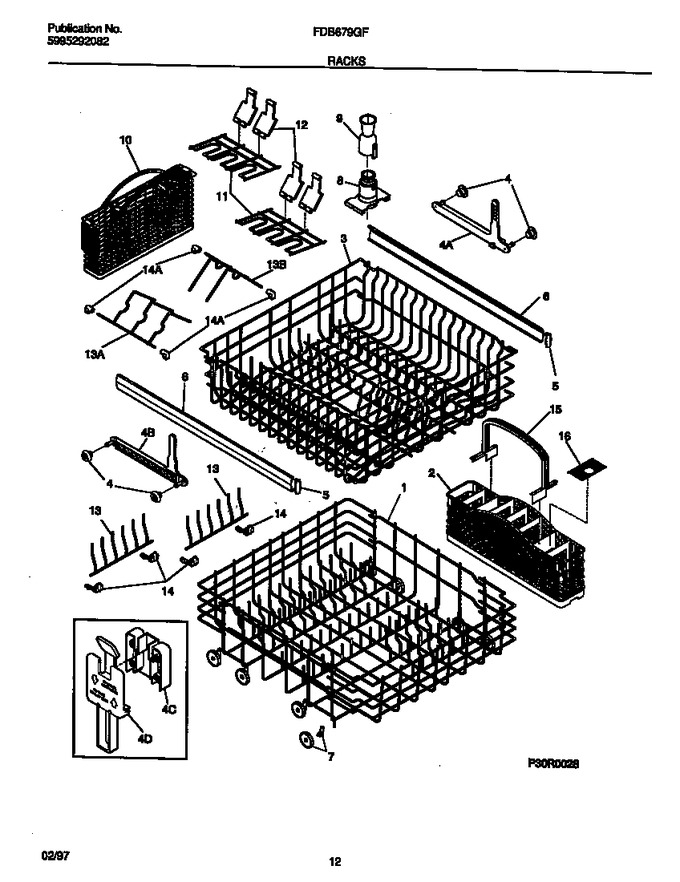

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154207905		Rack Assy-lower		Appelez-nous	-
2	5304535382		Basket-silverware   (Replaces: 154295201)			Immediately	$ 25.43
3	154207705		Rack Assy-upper		Appelez-nous	-
4	154293402		Axle,adjustable Rack ,lh ,(1)		Appelez-nous	-
4	5304535381		Wheel,upper Rack ,(4)   (Replaces: 5303286384)			Immediately	$ 10.05
4	154293401		Axle,adjustable Rack ,rh ,(1)		Appelez-nous	-
4	154309901		Support-mechanism,adjustable Rack ,(2)   (Replaces: 154293301)				$ 32.63
4	154293201		Support-axle,adjustable Rack ,(2)		Appelez-nous	-
5	5300809927		Cap,slide ,(4)			Immediately	$ 3.69
6	154597801		Slide,rack ,(2)   (Replaces: 154232701)			Immediately	$ 9.36
7	5304532229		Wheel & Bracket Assy,lower Rack   (Replaces: 154174501)			Immediately	$ 12.75
9	154251801		Funnel				$ 49.88
10	154238801		Basket-utility, White				$ 302.77
11	154225102		Shelf-cup, Half, White, (2)		Appelez-nous	-
12	154238901		Bracket-shelf Cup		Appelez-nous	-
13	154225402		Fence, Multi, 3 Wire, Upper Rack, (3)				$ 43.37
13	154225302		Fence, Multi, 2 Wire, Upper Rack, (1)		Appelez-nous	-
13	5304535768		Fence, Fold Down, White, Lower Rack, (2)   (Replaces: 154224902)			Immediately	$ 162.61
14	154376501		Bracket-fence,fold Down ,white ,   (Replaces: 154241901)			Immediately	$ 47.85
15	5304535382		Handle-siverware Basket   (Replaces: 154254001)			Immediately	$ 25.43
16	154254101		Cover-silverware Basket, White		Appelez-nous	-
14A	5304506508		Bracket-fence,multi ,white ,upper Rack ,   (Replaces: 154242001)			Immediately	$ 5.79
14B	154242101		Bushing-fence,multi ,upper Rack ,(8)		Appelez-nous	-
