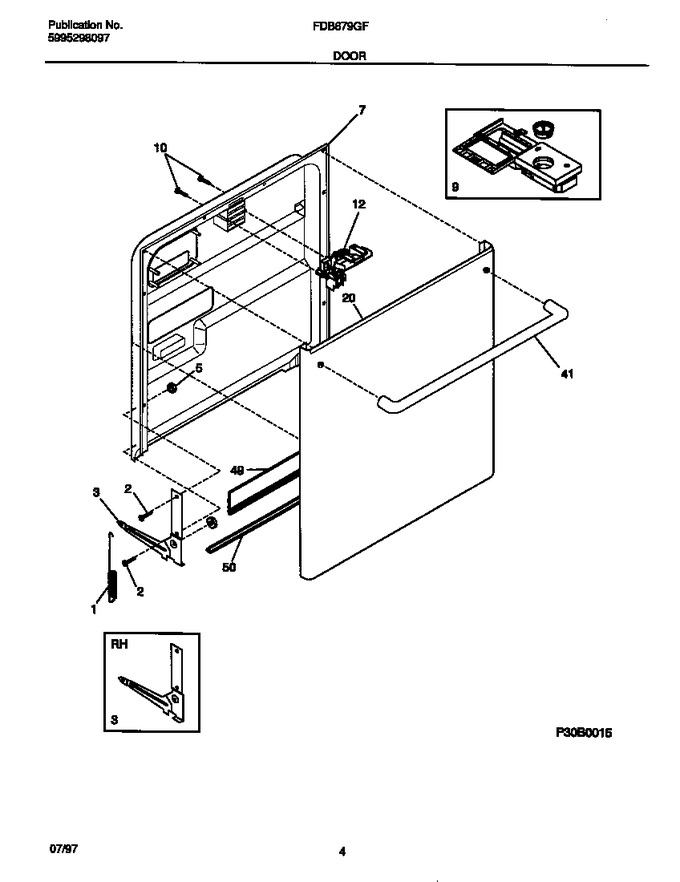

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430601 | Spring-door, (2) (Replaces: 154226002) |
|
Immediately | $ 48.12 | ||||
| 2 | 154093301 | Screw-arm Assy |
|
Immediately | $ 2.12 | ||||
| 5 | 154079601 | Nut-arm Assy |
|
$ 0.41 | |||||
| 7 | 154299002 | Door-inner Assy |
|
- | |||||
| 9 | 154574401 | Dispenser-det/rinse Aid (Replaces: 154230101) |
|
Immediately | $ 102.77 | ||||
| 10 | 154304301 | Screw-latch Mtg,(2) |
|
$ 7.51 | |||||
| 12 | 5304442175 | Latch Assy,white (Replaces: 154308101) |
|
Immediately | $ 151.49 | ||||
| 20 | 154292605 | Door Assy |
|
- | |||||
| 49 | 809006501 | Gasket-door, Bottom (Replaces: 154297601) |
|
Immediately | $ 36.22 | ||||
| 50 | 154211401 | Support-door Hinge |
|
$ 25.69 | |||||
| *00763 | 154213801 | Cleaner, Stainless Steel |
|
- | |||||
| *00764 | 5304538695 | Insulation,door (Replaces: 154253201) |
|
- | |||||
| 3A | 5304409912 | Arm Assy, Lh (Replaces: 154225902) |
|
$ 59.54 | |||||
| 3B | 5304409912 | Arm Assy, Rh (Replaces: 154225901) |
|
$ 59.54 | |||||
| 3C | 154211501 | Pin-arm (not Illustrated) |
|
- | |||||
| 3D | 154298101 | Washer, Arm (not Illustrated) |
|
- | |||||
| 41A | 154207004 | Towel Bar Assy |
|
$ 340.25 | |||||
| 41B | 154222201 | Screw-shoulder (not Illustrated) |
|
$ 3.17 |
