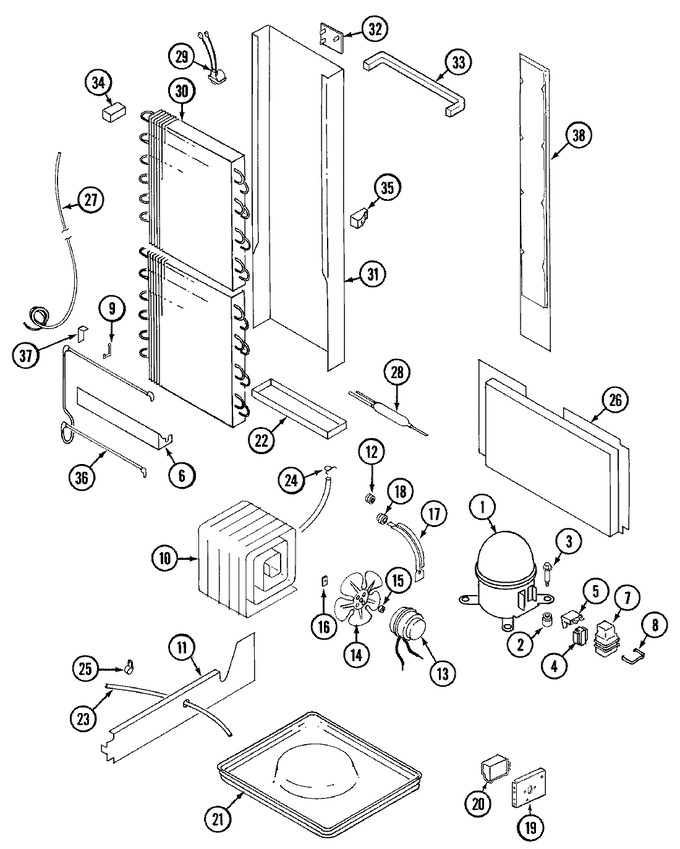

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA1029-1 | Compressor (220-volts) | 12 |
|
- | ||||
| 1 | 68840-2 | Wire Harness, Compressor | 12 |
|
- | ||||
| 2 | 17245-4 | Grommet, Compressor | 12 |
|
- | ||||
| 3 | 65275-9 | Screw, Compressor Mounting | 12 |
|
- | ||||
| 4 | 68857-4 | Relay, Start | 12 |
|
- | ||||
| 5 | 69105-1 | Overload | 12 |
|
- | ||||
| 6 | WP489478 | Screw (Replaces: 400017-1) | 12 |
|
$ 6.98 | ||||
| 6 | 29915-13 | Shield, Defrost Heater | 12 |
|
- | ||||
| 7 | 69754-1 | Cover, Terminal | 12 |
|
- | ||||
| 8 | 59596-1 | Clip, Terminal Cover | 12 |
|
- | ||||
| 9 | 52067-1 | Clip, Defrost Heater | 12 |
|
- | ||||
| 10 | 414001-1 | Screw | 12 |
|
- | ||||
| 10 | 60408-2 | U-nut, Condenser | 12 |
|
- | ||||
| 10 | 64998-1 | Condenser | 12 |
|
- | ||||
| 11 | 66494-1 | Baffle, Air Divider | 12 |
|
- | ||||
| 11 | WP488729 | Screw (Replaces: 9986-45) | 12 |
|
Immediately | $ 7.01 | |||
| 12 | 53351-1 | Grommet, Condenser Tubing | 12 |
|
- | ||||
| 13 | 68445-8 | Motor, Condenser Fan | 12 |
|
- | ||||
| 13 | 65275-33 | Screw | 12 |
|
- | ||||
| 14 | WP12587601 | Blade, Condenser Fan (Replaces: 69958-2) | 12 |
|
$ 114.00 | ||||
| 15 | 61001686 | Washer, Fan Blade | 12 |
|
- | ||||
| 16 | WP486692 | Clip, Fan Blade (Replaces: 19914) | 12 |
|
$ 7.04 | ||||
| 17 | 69181-1 | Bracket, Fan Motor | 12 |
|
- | ||||
| 18 | 56933-1 | Grommet, Bracket | 12 |
|
- | ||||
| 19 | 29282-2 | Bracket, Mounting Timer | 12 |
|
- | ||||
| 19 | WP489478 | Screw (Replaces: 400017-1) | 12 |
|
$ 6.98 | ||||
| 20 | 66128-5 | Timer, Defrost | 12 |
|
- | ||||
| 20 | 405007-1 | Screw | 12 |
|
- | ||||
| 21 | 68236-1 | Pan, Drain | 12 |
|
$ 89.75 | ||||
| 22 | 53523-2 | Trough, Drain | 12 |
|
- | ||||
| 23 | 26911-25 | Hose, Drain | 12 |
|
- | ||||
| 24 | WP596669 | Clamp, Drain Hose (Replaces: 9602-3) | 12 |
|
Immediately | $ 7.56 | |||
| 25 | 53516-5 | Clamp, Drain Hose | 12 |
|
- | ||||
| 26 | WP488729 | Screw (Replaces: 9986-45) | 12 |
|
Immediately | $ 7.01 | |||
| 26 | 66339-3 | Cover | 12 |
|
- | ||||
| 27 | 26088-23 | Sleeve | 12 |
|
- | ||||
| 27 | 65013-15 | Heat Exchanger | 12 |
|
- | ||||
| 28 | WPW10143759 | Drier (Replaces: 13900-1) | 12 |
|
Immediately | $ 27.70 | |||
| 29 | 52085-29 | Thermostat, Defrost | 12 |
|
$ 70.25 | ||||
| 30 | 52551-22 | Evaporator | 12 |
|
- | ||||
| 31 | 68834-2 | Housing, Evaporator | 12 |
|
- | ||||
| 32 | 55878-1 | Board, Terminal | 12 |
|
- | ||||
| 33 | 66325-18 | Seal | 12 |
|
- | ||||
| 34 | 65063-1 | Seal, Styrofoam-(left) | 12 |
|
- | ||||
| 35 | 65064-1 | Seal, Styrofoam-(right) | 12 |
|
- | ||||
| 36 | 69848-4 | Heater, Defrost | 12 |
|
- | ||||
| 37 | 52561-1 | Bracket, Heater Shield | 12 |
|
- | ||||
| 38 | 70159-3 | Wire Harness, Main | 12 |
|
- | ||||
| 38 | WP489478 | Screw (Replaces: 400017-1) | 12 |
|
$ 6.98 | ||||
| 38 | 66381-1 | Cover | 12 |
|
- | ||||
| 39 | 108429-2 | Manual, Use & Care | 12 |
|
- |
