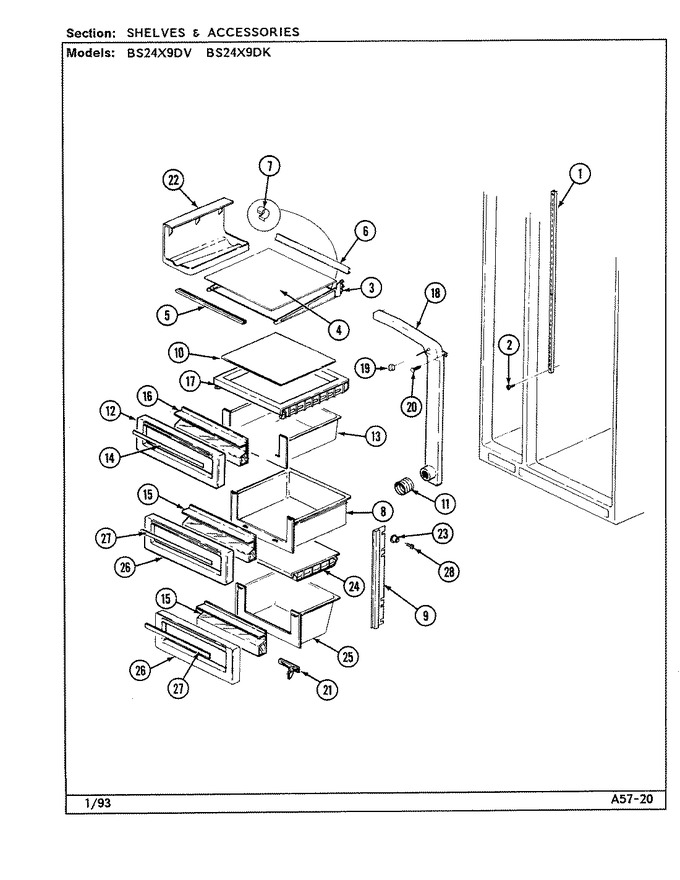

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67311-1		Rail, Shelf Support		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	65618-5		Frame, Shelf		Appelez-nous	-
4	66604-36		Shelf, Glass		Appelez-nous	-
5	66649-2		Trim, Shelves (front)		Appelez-nous	-
6	65276-15		Trim, Shelves (rear)		Appelez-nous	-
7	66333-1		Clip, Shelf Trim		Appelez-nous	-
8	69652-1		Pan, Crisper		Appelez-nous	-
9	69850-1		Gasket		Appelez-nous	-
10	69646-4		Shelf, Meat Pan Glass		Appelez-nous	-
11	68282-1		Bellows, Air Tunnel		Appelez-nous	-
12	69648-2		Front, Meat Pan		Appelez-nous	-
13	69647-1		Pan, Meat		Appelez-nous	-
14	69666-6		Insert, Pan Front		Appelez-nous	-
15	69655-2		Front, Crisper		Appelez-nous	-
16	69649-1		Handle		Appelez-nous	-
17	69646-4		Shelf, Meat Pan Glass		Appelez-nous	-
18	69640-1		Tunnel, Air		Appelez-nous	-
19	68755-2		Knob, Air Tunnel		Appelez-nous	-
20	28013-2		Rivet, Air Tunnel		Appelez-nous	-
21	69657-1		Slide, Control		Appelez-nous	-
22	69615-1		Holder, Beverage		Appelez-nous	-
23	67764-1		Support, Crisper Shelf				$ 8.05
24	69651-1		Shelf, Crisper		Appelez-nous	-
24	69653-1		Shelf, Crisper		Appelez-nous	-
25	69654-1		Pan, Crisper (lower)		Appelez-nous	-
26	68658-1		Door Handle		Appelez-nous	-
27	69666-5		Insert, Pan Front		Appelez-nous	-
28	W11233072		Screw   (Replaces: 400015-36)			Immediately	$ 12.62
28	68391-1		Cover, Air Inlet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
