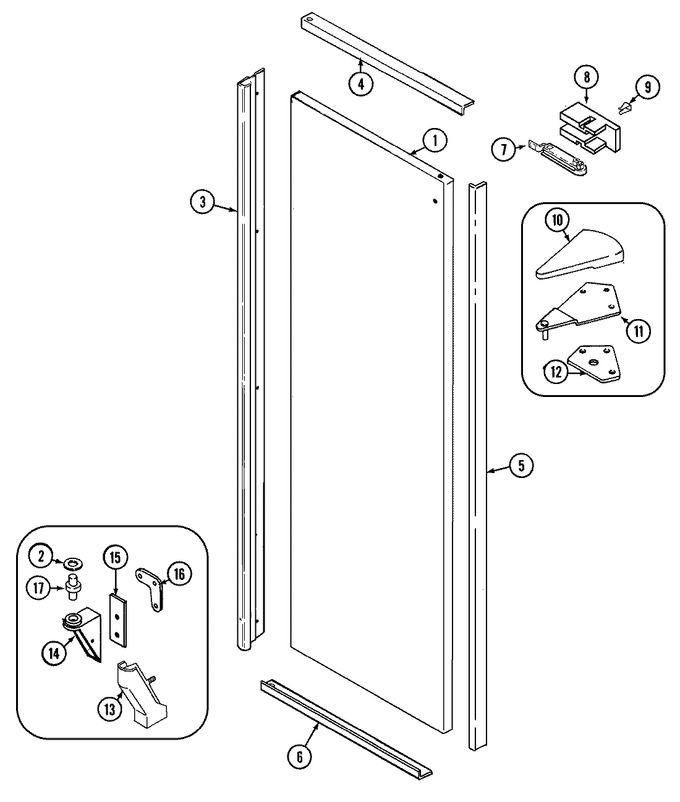

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002965		Insert, Panel (stnls)	10	Appelez-nous	-
1	72448-703-BK		Panel, F.f. Door (blk)	10	Appelez-nous	-
1	495034-900		Plug Button, Door	10	Appelez-nous	-
2	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
3	61002961		Handle, F.f. Door (stnls)	10	Appelez-nous	-
3	65275-37		Screw, Handle	10	Appelez-nous	-
4	61002962		Trim, Perimeter (top)	10	Appelez-nous	-
5	61002963		Trim, Perimeter (side)	10	Appelez-nous	-
6	61002964		Trim, Perimeter (bottom)	10	Appelez-nous	-
6	65275-71		Screw	10	Appelez-nous	-
7	69258-1		Closer, Door	10	Appelez-nous	-
7	414004-35		Screw	10	Appelez-nous	-
8	52613-1		Insulation, Closer	10	Appelez-nous	-
8	70049-1		Insulation Door	10	Appelez-nous	-
9	69261-1		Bracket, Closer	10	Appelez-nous	-
10	70121-6		Cover, Upper Hinge (blk)	10	Appelez-nous	-
11	53709-26		Hinge Upper	10	Appelez-nous	-
11	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
12	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
13	61001609		Cover, Hinge (blk)	10	Appelez-nous	-
14	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
14	69516-2		Hinge, Lower (blk)	10	Appelez-nous	-
15	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
16	65275-59		Screw	10	Appelez-nous	-
16	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
17	69845-1		Pin, Lower Hinge	10			$ 44.55
