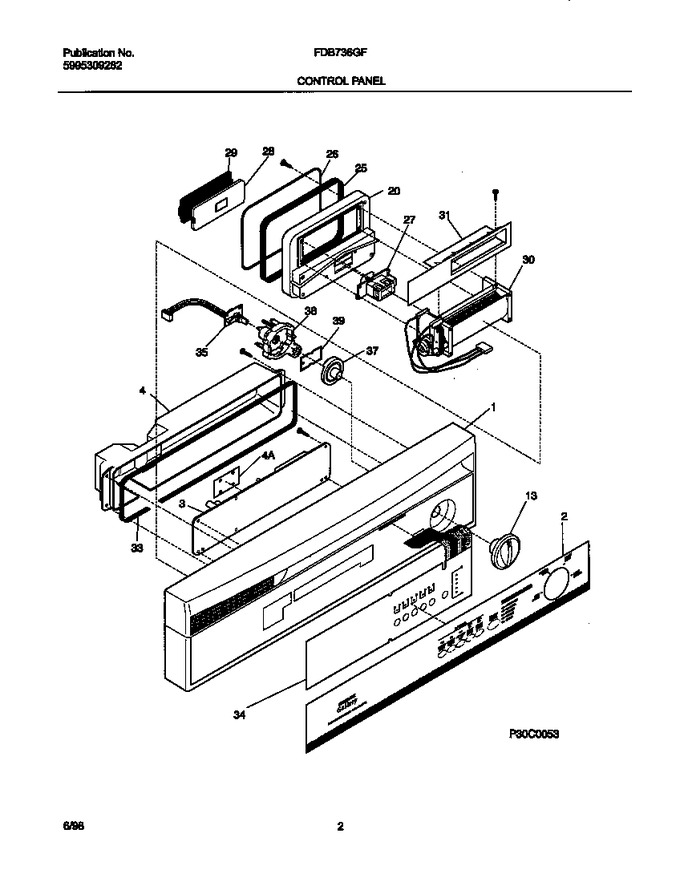

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222801		Panel-control, White		Appelez-nous	-
2	154236801		Insert-control Pnl		Appelez-nous	-
3	154227702		Control		Appelez-nous	-
4	154287801		Cover-control		Appelez-nous	-
4	154301301		Cover-pc Protector		Appelez-nous	-
13	154239504		Knob-timer, White				$ 67.04
20	154228301		Duct,dynamic				$ 35.02
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
30	154226802		Blower,crossflow				$ 37.28
31	154228101		Chamber,vapor				$ 62.84
33	154292401		Gasket-cover		Appelez-nous	-
34	154227601		Keypad, 6 Pad		Appelez-nous	-
35	154228001		Board-rotary		Appelez-nous	-
37	154294801		Wheel-selectronic		Appelez-nous	-
38	154294901		Housing-selectronic		Appelez-nous	-
39	154295001		Spring-selectronic		Appelez-nous	-
*28000	154103702		Screw-switch Mtg, (2)				$ 13.46
*28001	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
*28002	154234702		Harness-wiring		Appelez-nous	-
*28003	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
