SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Door


04 - Tub


05 - Motor


06 - Frame


07 - Rack

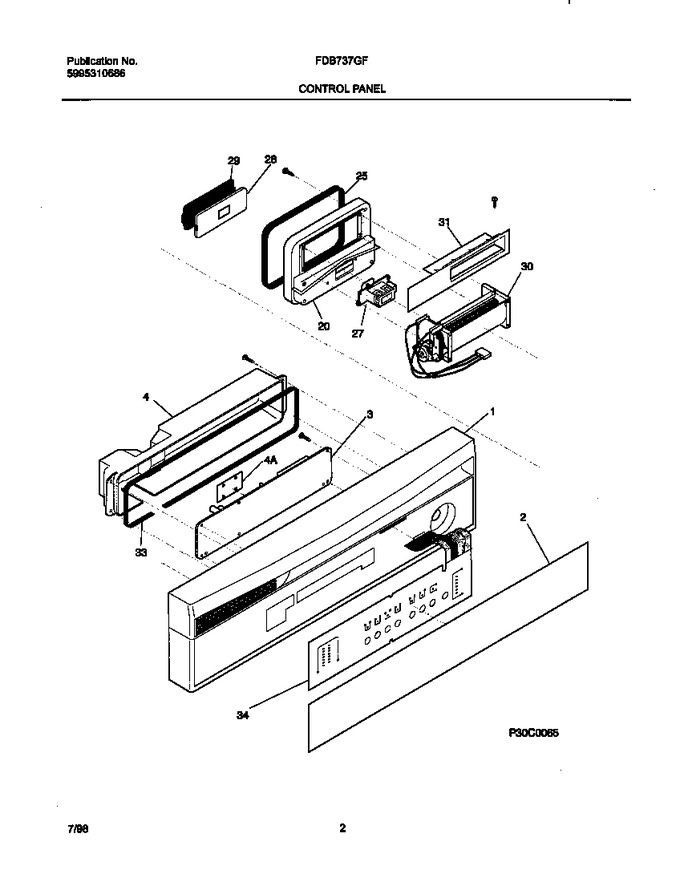

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222803		Panel-control, Black		Appelez-nous	-
2	154305903		Insert-control Pnl, Black		Appelez-nous	-
3	154227701		Control		Appelez-nous	-
4	154287801		Cover-control		Appelez-nous	-
4	154301301		Cover-pc Protector		Appelez-nous	-
10	154103702		Screw-latch Mtg, (2)				$ 13.46
20	154228301		Duct,dynamic				$ 35.02
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
30	154226802		Blower,crossflow				$ 37.28
31	154228101		Chamber,vapor				$ 62.84
33	154292401		Gasket-cover		Appelez-nous	-
34	154303101		Keypad, 7pad		Appelez-nous	-
*73240	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
*73241	154234702		Harness-wiring		Appelez-nous	-
*73242	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*73243	154306101		Spacer-pocket Console		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
