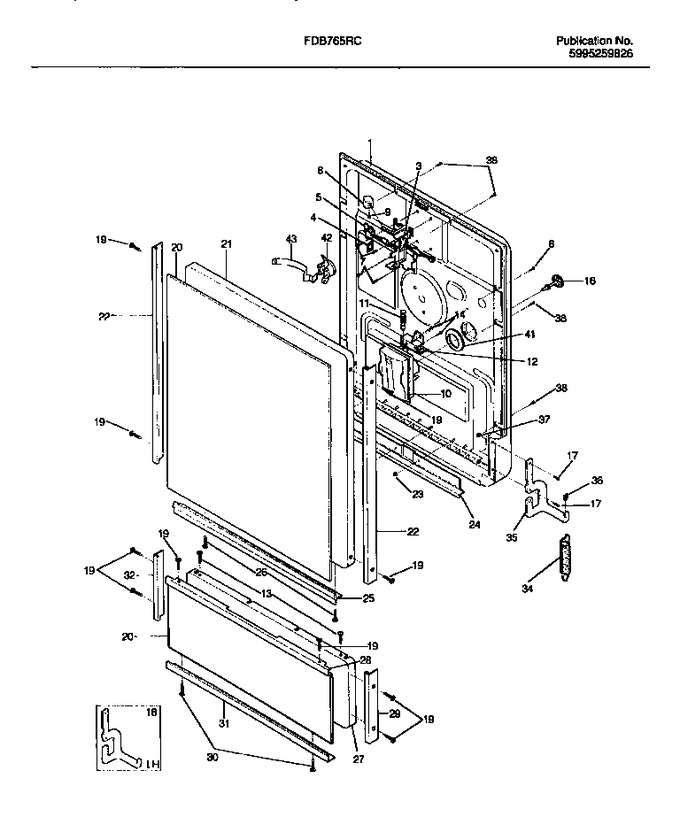

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154196902		Door Assy				$ 228.01
3	154132502		Latch Assy		Appelez-nous	-
4	154142901		Cover-switch		Appelez-nous	-
5	154105301		Switch				$ 21.63
6	5300808749		Screw-8 X 5/8``		Appelez-nous	-
7	218781101		Screw-8a X 5/8`` (4)   (Replaces: 154026501)				$ 15.60
8	5300808712		Latch Knob-black				$ 31.71
9	5300808715		Screw, 8, 32 X 5/16``		Appelez-nous	-
10	5300806753		Body-dispenser				$ 69.93
11	5300809898		Plunger				$ 36.49
12	5300809782		Bi-metal Rinse Dispenser				$ 47.51
13	5300808749		Screw-8 X 5/8``		Appelez-nous	-
14	5300807501		Screw-8a X 1/2``		Appelez-nous	-
16	5303943094		Fill-plug		Appelez-nous	-
17	154093301		Screw-10-24 X 58``			Immediately	$ 2.12
18	5303270031		Arm Assembly, Includes Rh And Lh				$ 79.75
19	5300808749		Screw-8 X 5/8``		Appelez-nous	-
20	5300808908		Insert-door & Access Panels-almond/black		Appelez-nous	-
20	5303943093		Insert-door & Access Panels-white/clear		Appelez-nous	-
21	5303299935		Door Panel-white		Appelez-nous	-
22	5303943080		Trim-dr Rh And Lh		Appelez-nous	-
23	154026601		Speednut				$ 25.67
24	5300809773		Baffle Seal		Appelez-nous	-
25	154103603		Trim - Dr Bottom		Appelez-nous	-
26	5300808749		Screw-8 X 5/8``		Appelez-nous	-
27	5303299936		Access Panel-white		Appelez-nous	-
28	5300808346		Trim - Access Top		Appelez-nous	-
29	WP4387489		Trim - Access Rh   (Replaces: 530327)				$ 93.42
30	5300808749		Screw-8 X 5/8``		Appelez-nous	-
31	5300809994		Trim-access Bottom		Appelez-nous	-
32	5303272125		Trim - Access Lh				$ 45.31
34	5300809703		Door Spring				$ 39.04
35	5303270031		Arm Assembly, Includes Rh And Lh				$ 79.75
36	5300805884		Spring Pad (2)		Appelez-nous	-
37	154079601		Nut (4)				$ 0.41
38	5300809696		Screw-8-18		Appelez-nous	-
41	5300805631		Grommet-rinse Agent				$ 6.29
42	5303297402		Thermostat		Appelez-nous	-
42	154419403		Screw-thermostat Retainer, (non-illustrated)   (Replaces: 5300808658)				$ 13.10
43	5300809097		Retainer-themostat		Appelez-nous	-
