New Model Search:

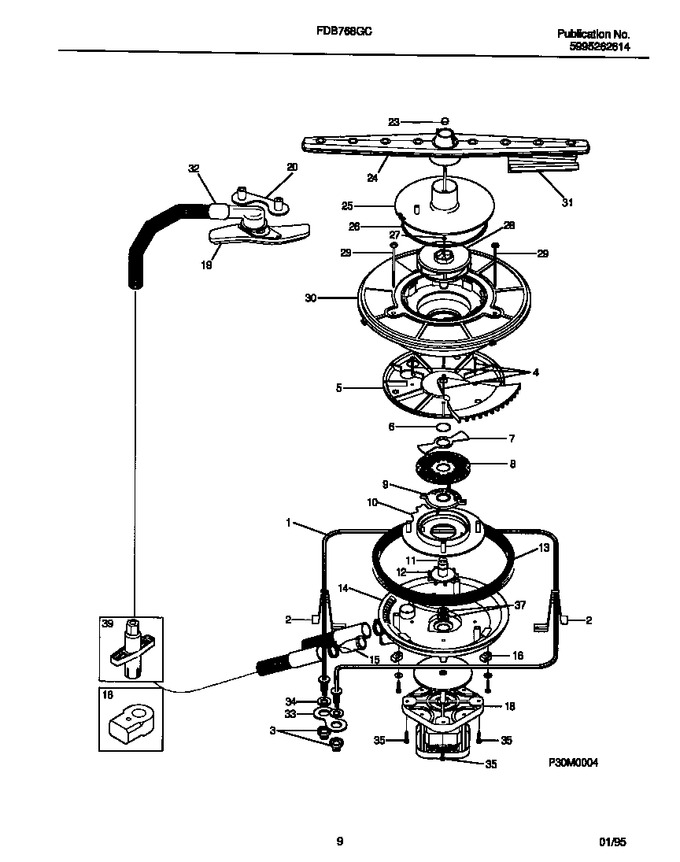

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809584 | Heater |
|
$ 222.23 | |||||
| 2 | 5300809585 | Heater Bracket (2) |
|
- | |||||
| 3 | 154106202 | Heater Nut (2) (Replaces: 154106201) |
|
Immediately | $ 18.32 | ||||
| 4 | 154086301 | Screw 8 - 18 Torx (4) |
|
- | |||||
| 5 | 154084701 | Separator Plate |
|
- | |||||
| 6 | 154085201 | Snap Ring |
|
- | |||||
| 7 | 154085001 | Macerator |
|
- | |||||
| 8 | 154084901 | Macerator Screen |
|
- | |||||
| 9 | 154085101 | Shroud |
|
- | |||||
| 10 | 154084601 | Volute Cover |
|
- | |||||
| 11 | 5303351052 | O-ring |
|
$ 4.58 | |||||
| 12 | 154085401 | Lower Impeller |
|
- | |||||
| 13 | 154085501 | Pump Gasket |
|
$ 103.48 | |||||
| 14 | 154084501 | Pump Housing |
|
- | |||||
| 15 | 5300809937 | Check Valve |
|
$ 74.71 | |||||
| 16 | 154084801 | Pump Retainers |
|
- | |||||
| 18 | 5303943107 | Motor-includes Watershield |
|
- | |||||
| 19 | 154119401 | Upper Spray Arm |
|
$ 59.85 | |||||
| 20 | 154126401 | Plate-upper Spray Arm Mounting |
|
- | |||||
| 23 | 154190401 | Spray Arm Nut |
|
$ 21.00 | |||||
| 24 | 154156601 | Lower Spray Arm Assy |
|
- | |||||
| 25 | 154157401 | Filter Housing Cover |
|
$ 63.89 | |||||
| 26 | 154086001 | Seal |
|
$ 18.17 | |||||
| 27 | 154089201 | Screw 10-32 Hexagonal |
|
- | |||||
| 28 | 154085301 | Upper Impeller |
|
$ 35.96 | |||||
| 29 | 154086201 | Screw 10 - 16 Torx (3) |
|
- | |||||
| 30 | 154086101 | Filter Housing Assy |
|
$ 36.33 | |||||
| 31 | 5300809938 | Spray Arm Shield (2) |
|
$ 37.05 | |||||
| 32 | 154119301 | Delivery Tube |
|
- | |||||
| 33 | 5300809587 | Washer - Heater (2) |
|
- | |||||
| 34 | 154064901 | Insulating Washer |
|
$ 8.14 | |||||
| 35 | 5300809022 | Screw-motor Mtg (4) |
|
- | |||||
| 37 | 5303943099 | Seal Kit |
|
- | |||||
| 39 | 154154801 | Tool - 4 In 1 |
|
- | |||||
| *39324 | 5300810094 | Screw-heater Bracket (2) |
|
- | |||||
| *39325 | 154089101 | Screw-retainers (3) |
|
- | |||||
| *39326 | 154085801 | Seal, Second Level |
|
- | |||||
| *39327 | 154085901 | Seal-impeller |
|
- |
