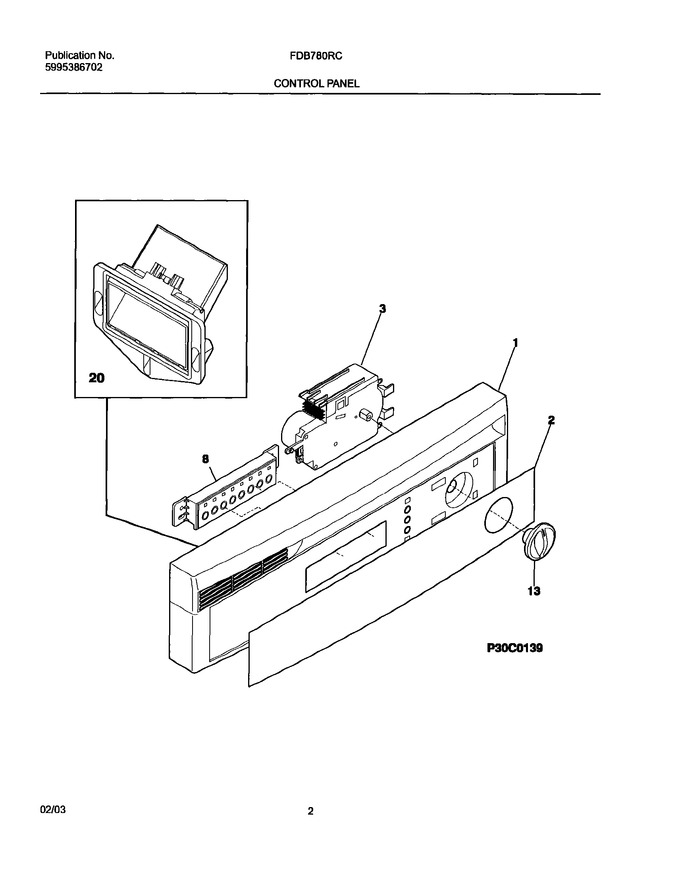

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154454304		Panel,control ,bisque		Appelez-nous	-
2	154458304		Insert,control Panel ,bisque		Appelez-nous	-
13	154426904		Knob,timer ,bisque				$ 54.65
20	154433001		Vent Assy,static Dry				$ 50.82
F3	154409001		Timer				$ 460.74
F8	154389901		Switch-selector,8 Button				$ 57.07
NI	154458401		Wiring Harness		Appelez-nous	-
NI	154390001		Shield-switch		Appelez-nous	-
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154399008		Label,energy Guide		Appelez-nous	-
NI	154131203		Shield-timer		Appelez-nous	-
NI	154095701		Screw,thread Rolling ,(2) ,timer				$ 10.34

    View Diagram in Separate Window       Print Part List
