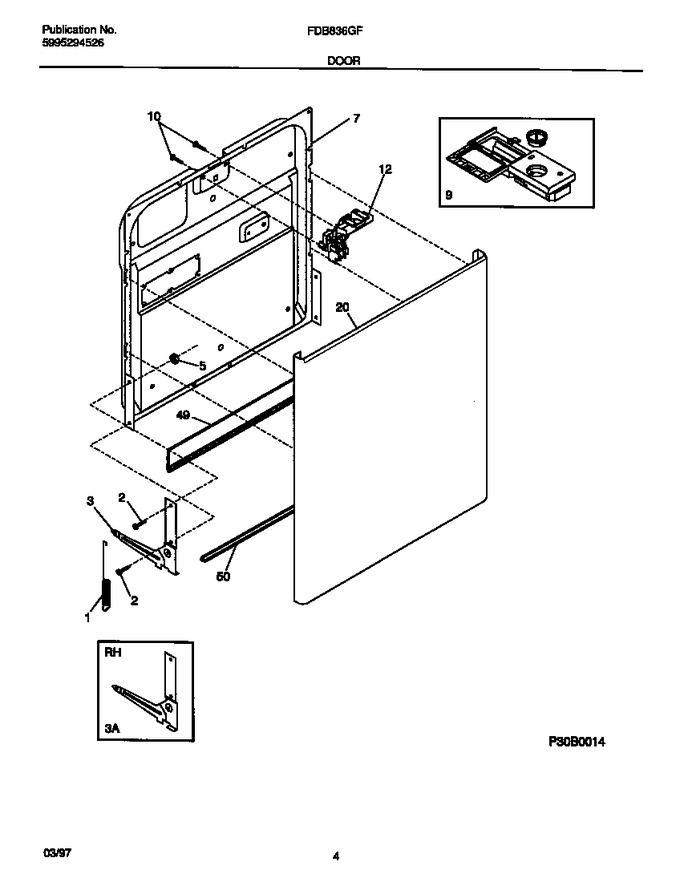

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154430601		Spring-door, (2)   (Replaces: 154226002)			Immediately	$ 48.12
2	154093301		Screw-arm Assy			Immediately	$ 2.12
3	5304409912		Arm Assy, Rh   (Replaces: 154225901)				$ 59.54
3	5304409912		Arm Assy, Lh   (Replaces: 154225902)				$ 59.54
5	154079601		Nut-arm Assy				$ 0.41
7	154299002		Door-inner Assy		Appelez-nous	-
9	154574401		Dispenser-det/rinse Aid   (Replaces: 154230101)			Immediately	$ 102.77
10	154304301		Screw-latch Mtg,(2)				$ 7.51
12	5304442175		Latch Assy,black   (Replaces: 154308103)			Immediately	$ 151.49
12	154103702		Screw-switch Mtg, (2) (not Illustrated)				$ 13.46
20	154292603		Door, Black		Appelez-nous	-
49	809006501		Gasket-door, Bottom   (Replaces: 154297601)			Immediately	$ 36.22
50	154211401		Support-door Hinge				$ 25.69
*96123	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
*96124	154200601		Screw-10-16 X 3/8				$ 7.98
*96125	5304538695		Insulation,door   (Replaces: 154253201)		Appelez-nous	-
*96126	5300808749		Screw, C.r. Truss, 8 .625		Appelez-nous	-
3A	154211501		Pin-arm (not Illustrated)		Appelez-nous	-
3B	154298101		Washer, Arm (not Illustrated)		Appelez-nous	-
