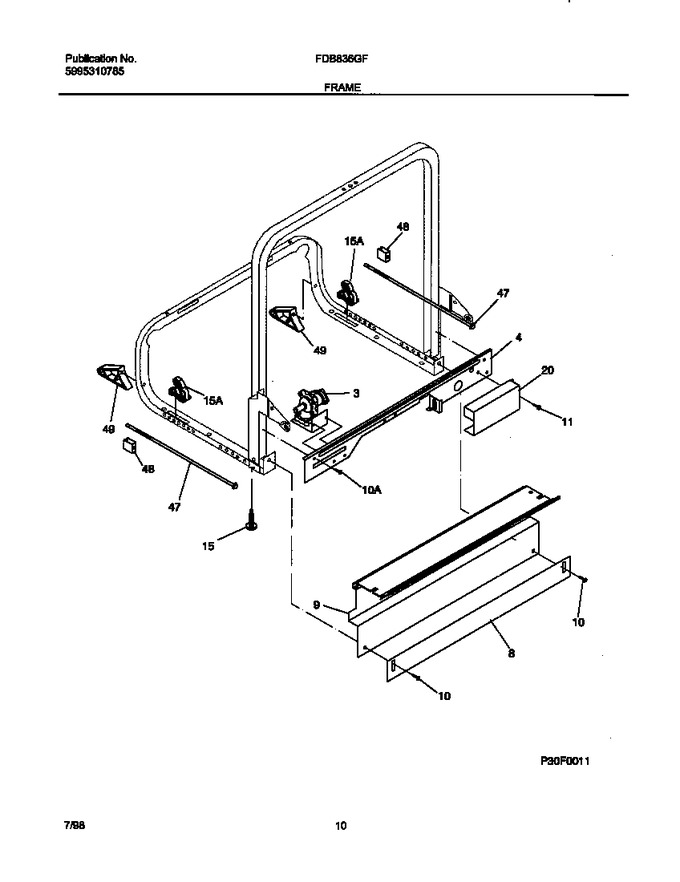

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	154637401		Valve-water   (Replaces: 154219601)			Immediately	$ 21.36
4	5304508587		Brace-front   (Replaces: 154208701)				$ 28.92
8	154745503		Toeplate-adjustable   (Replaces: 154227002)			Immediately	$ 15.75
9	5304501484		Toeplate   (Replaces: 154224702)			Immediately	$ 51.08
10	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
11	154294701		Screw, 7 Plas .375				$ 9.22
15	154210901		Screw-leveling		Appelez-nous	-
15	154227101		Leveling-rear				$ 31.71
20	154209601		Cover-junction Box				$ 39.80
47	154227301		Rod, Rear Leg		Appelez-nous	-
48	154227201		Clip, Rear Leg		Appelez-nous	-
49	154227401		Guard-motor		Appelez-nous	-
*23833	154249301		Insulation, Kickplate		Appelez-nous	-
*23834	154286801		Ring-retaining,adj Leg		Appelez-nous	-
*23835	154321801		Baffle,sound		Appelez-nous	-
*23836	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
*23837	154200601		Screw-10-16 X 3/8				$ 7.98
*23838	154290001		Insulation-baffle, Side		Appelez-nous	-
*23839	154290101		Guard-wire, Baffle		Appelez-nous	-
*23840	5300807270		Screw				$ 6.72
*23841	5300807373		Washer		Appelez-nous	-
*23842	5300808749		Screw, C.r. Truss, 8 .625		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
