SELECT A DIAGRAM
01 - Cover

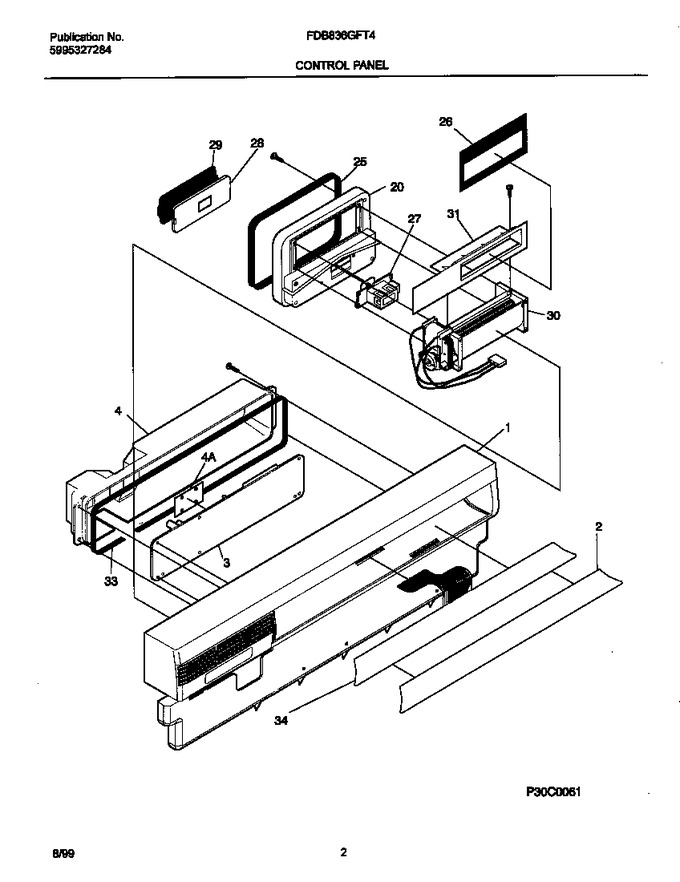

02 - Control Panel
03 - Door
04 - Tub
05 - Motor
06 - Frame
07 - Rack
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154253102 | Panel-control, Almond |
|
- | |||||
| 2 | 154236902 | Insert-control Pnl, Almond |
|
- | |||||
| 3 | 154227703 | Control |
|
- | |||||
| 4 | 154301301 | Cover-pc Protector |
|
- | |||||
| 4 | 154287901 | Cover-control |
|
$ 182.91 | |||||
| 20 | 154228301 | Duct,dynamic |
|
$ 35.02 | |||||
| 25 | 154303901 | Gasket-vent |
|
- | |||||
| 26 | 154229201 | Seal-chamber |
|
$ 12.81 | |||||
| 27 | 154226701 | Actuator,wax |
|
$ 65.46 | |||||
| 28 | 154226901 | Valve-vent |
|
- | |||||
| 29 | 154226401 | Gasket-valve |
|
$ 51.14 | |||||
| 30 | 154226802 | Blower,crossflow |
|
$ 37.28 | |||||
| 31 | 154228101 | Chamber,vapor |
|
$ 62.84 | |||||
| 33 | 154292402 | Gasket-cover |
|
- | |||||
| 34 | 154321901 | Keypad,8pad |
|
- | |||||
| *93280 | 154200401 | Screw, 6-10 X 3/8, Pan Plask |
|
$ 8.56 | |||||
| *93281 | 154301202 | Harness-wiring, Main |
|
- | |||||
| *93282 | 154302302 | Nameplate Assy, Almond |
|
- |
