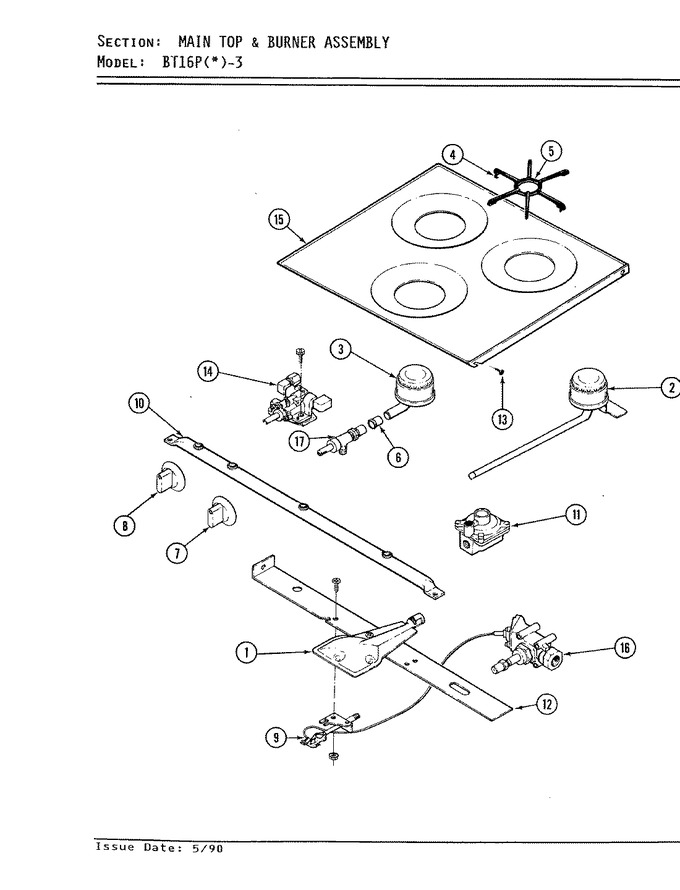

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cavity & Door
02 - Main Top & Burner Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3403W003-45 | Burner, Assembly Oven | 1 |
|
- | ||||
| 2 | 7505P143-60 | Burner, Assy L.r. | 1 |
|
- | ||||
| 3 | 7505P142-60 | Burner, Assy Front | 1 |
|
- | ||||
| 4 | 7112P066-60 | Clip, Grate | 1 |
|
- | ||||
| 5 | 2003F004-00 | Grate Top | 1 |
|
- | ||||
| 6 | 7214P015-60 | Insert, Burner | 1 |
|
- | ||||
| 7 | 7733P039-60 | Knob, Valve | 1 |
|
- | ||||
| 8 | 7731P035-60 | Knob, Thermostat | 1 |
|
- | ||||
| 9 | 968-143 | Pilot, Oven | 1 |
|
- | ||||
| 10 | 7513P097-60 | Pipe Manifold | 1 |
|
- | ||||
| 11 | 7507P045-60 | Half Union | 1 |
|
- | ||||
| 11 | 7507P047-60 | Plug, Pipe | 1 |
|
- | ||||
| 11 | 7510P031-60 | Regulator, Pressure | 1 |
|
- | ||||
| 12 | 3807F320-45 | Support, Oven Burner | 1 |
|
- | ||||
| 13 | 8003P008-60 | Bumper | 1 |
|
- | ||||
| 14 | 7506P043-60 | Tube, 3/16 O.d. X 46 | 1 |
|
- | ||||
| 14 | 1555280K | Nut & Ferrule 1/4`` Kit | 1 |
|
- | ||||
| 14 | 1555222 | Nut, Loxit (3/16``) | 1 |
|
- | ||||
| 14 | 7506P073-60 | Tube, 1/4 X 41 | 1 |
|
- | ||||
| 14 | 7515P024-60 | Thermostat | 1 |
|
- | ||||
| 14 | 7507P049-60 | Flange, T Stat | 1 |
|
- | ||||
| 15 | 2001F056-81 | Top, Main (white) | 1 |
|
- | ||||
| 15 | 2001F056-84 | Top, Main (almond) | 1 |
|
- | ||||
| 16 | 1555261K | Nut & Ferrule (3/16``) | 1 |
|
- | ||||
| 16 | 1555279 | Nut, 1/4`` Loxit | 1 |
|
- | ||||
| 16 | 7501P056-60 | Valve, Oven | 1 |
|
- | ||||
| 17 | 7502P095-60 | Valve | 1 |
|
- |
