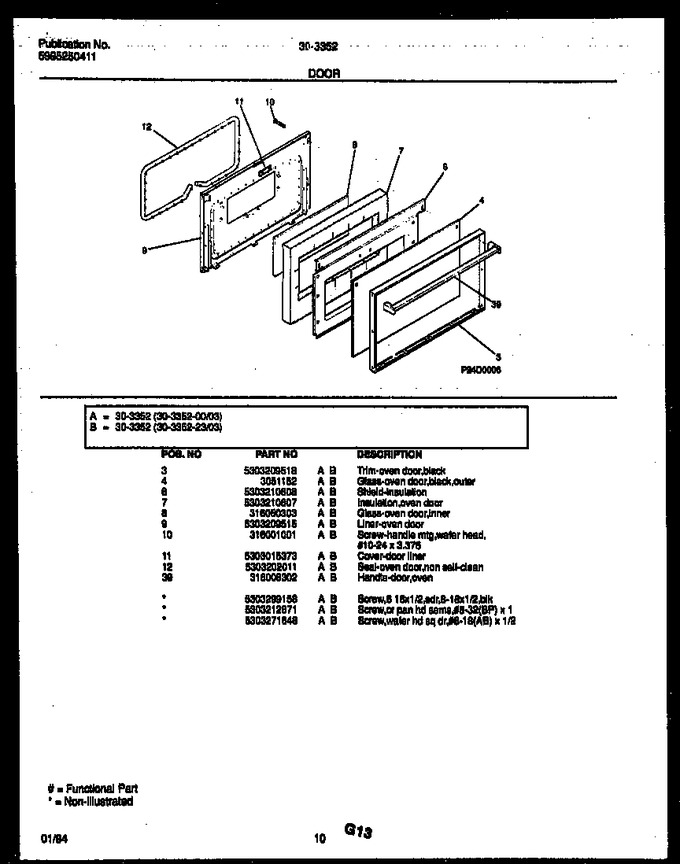

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303209518		Trim-oven Door (black)		Appelez-nous	-
4	3051152		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303210608		Shield-insulation		Appelez-nous	-
7	5303210607		Insulation, Oven Door		Appelez-nous	-
8	316050303		Glass-oven Door, Inner		Appelez-nous	-
9	5303209515		Liner-oven Door		Appelez-nous	-
10	316001001		Screw-handle Mtg, Wafer Head, 10-24 X 3.375		Appelez-nous	-
11	5303015373		Cover-door Liner		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	316008302		Handle-door, Oven		Appelez-nous	-
*94072	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*94072	5303299158		Screw, 8 18 X 1/2, Sdr, 8-18 X 1/2, Blk		Appelez-nous	-
*94072	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
