SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks

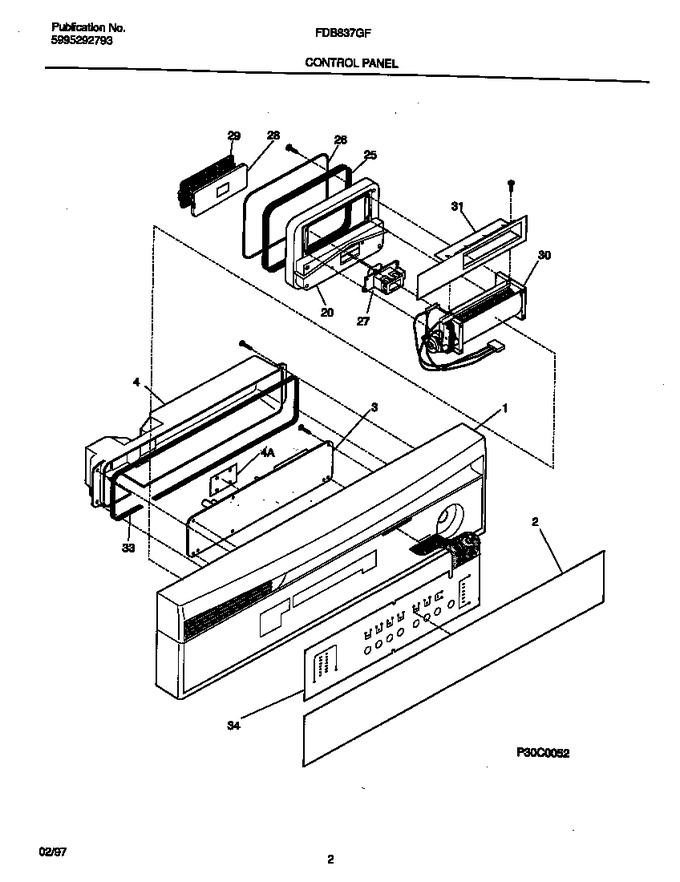

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222801		Panel-control, White		Appelez-nous	-
2	154301401		Insert-control Pnl, White		Appelez-nous	-
4	154301301		Cover-pc Protector		Appelez-nous	-
4	154287801		Cover-control		Appelez-nous	-
20	154228301		Duct,dynamic				$ 35.02
25	154287301		Seal-chamber		Appelez-nous	-
26	154240501		O-ring, Vent Dr Liner				$ 29.19
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
30	154226801		Blower-crossflow		Appelez-nous	-
31	154228101		Chamber,vapor				$ 62.84
33	154292401		Gasket-cover		Appelez-nous	-
34	154298501		Keypad, 8 Pad		Appelez-nous	-
*53840	154306101		Spacer-pocket Console		Appelez-nous	-
*53841	154200401		Screw, 6-10 X 3/8, Pan Plask, Switch				$ 8.56
*53842	154234701		Harness-wiring, Main		Appelez-nous	-
3A	154227701		Control		Appelez-nous	-
3B	154297701		Screw-switch Mtg (not Illustrated)				$ 13.46

    View Diagram in Separate Window       Print Part List
