View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door
02 - Oven

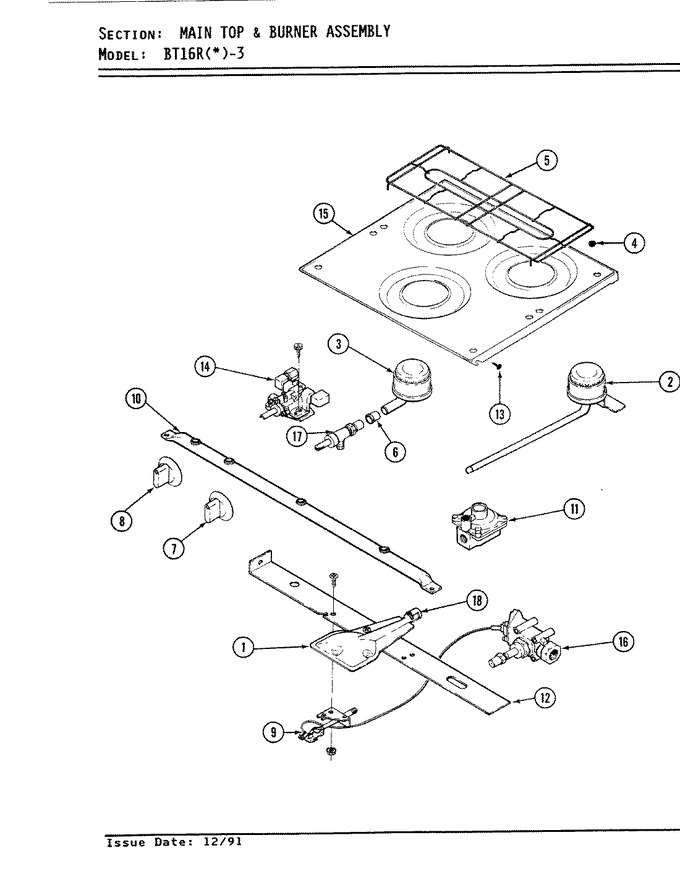

03 - Top & Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3403W003-45 | Burner, Assembly Oven | 01 |
|
- | ||||
| 1 | 3403W025-45 | Oven Burner Assy. | 16 |
|
- | ||||
| 2 | 7505P181-60 | Burner, Top Assy. (rear) | 01 |
|
- | ||||
| 3 | 7505P142-60 | Burner, Assy Front | 01 |
|
- | ||||
| 4 | Y8007P02060 | Grommet | 01 |
|
$ 5.88 | ||||
| 5 | 7518P012-60 | Grate, Top | 01 |
|
- | ||||
| 6 | 7214P015-60 | Insert, Burner | 01 |
|
- | ||||
| 7 | 7733P044-60 | Knob, Burner | 01 |
|
- | ||||
| 8 | 7731P042-60 | Knob, Thermostat (bt16) | 01 |
|
- | ||||
| 8 | 7731P048-60 | Knob, Thermostat | 23 |
|
- | ||||
| 8 | 7731P042-60 | Knob, Thermostat (bt16) | 22 |
|
- | ||||
| 8 | 7731P048-60 | Knob, Thermostat | 14 |
|
- | ||||
| 9 | 968-143 | Pilot, Oven | 22 |
|
- | ||||
| 9 | 968-143 | Pilot, Oven | 01 |
|
- | ||||
| 9 | 7505P202-60 | Pilot Burner | 14 |
|
- | ||||
| 9 | 7505P202-60 | Pilot Burner | 23 |
|
- | ||||
| 10 | 7513P097-60 | Pipe Manifold | 01 |
|
- | ||||
| 10 | 7507P047-60 | Plug, Pipe | 01 |
|
- | ||||
| 11 | 7507P083-60 | Fitting, Half Union | 01 |
|
- | ||||
| 11 | 7510P031-60 | Regulator, Pressure | 01 |
|
- | ||||
| 11 | 7510P041-60 | Regulator, Pressure | 07 |
|
- | ||||
| 12 | 3807F320-45 | Support, Oven Burner | 01 |
|
- | ||||
| 13 | 8003P008-60 | Bumper | 01 |
|
- | ||||
| 14 | 7515P029-60 | Thermostat | 22 |
|
- | ||||
| 14 | 3414F079-44 | Tubing, 1/4``- Odx42 1/2 | 01 |
|
- | ||||
| 14 | 7515P029-60 | Thermostat | 01 |
|
- | ||||
| 14 | 7515P031-60 | Thermostat | 14 |
|
- | ||||
| 14 | 1555222 | Nut, Loxit (3/16``) | 01 |
|
- | ||||
| 14 | 7515P031-60 | Thermostat | 23 |
|
- | ||||
| 14 | 3414F077-44 | Tubing, 3/16 X 41.5`` | 01 |
|
- | ||||
| 14 | 1555280K | Nut & Ferrule 1/4`` Kit | 01 |
|
- | ||||
| 15 | 2001F110-84 | Top, Main (alm) | 01 |
|
- | ||||
| 16 | 7501P121-60 | Valve, Oven | 23 |
|
- | ||||
| 16 | 1555279 | Nut, 1/4`` Loxit | 01 |
|
- | ||||
| 16 | 1555261K | Nut & Ferrule (3/16``) | 01 |
|
- | ||||
| 16 | 7501P056-60 | Valve, Oven | 22 |
|
- | ||||
| 16 | 7501P121-60 | Valve, Oven | 14 |
|
- | ||||
| 16 | 7501P056-60 | Valve, Oven | 01 |
|
- | ||||
| 17 | 7502P180-60 | Valve Top Burner | 12 |
|
- | ||||
| 17 | 7502P180-60 | Valve Top Burner | 01 |
|
- | ||||
| 17 | 7502P181-60 | Valve, Top Burner (5200) | 12 |
|
- | ||||
| 17 | 7502P095-60 | Valve | 01 |
|
- | ||||
| 18 | 3411F004-34 | Mixer, Air | 01 |
|
- | ||||
| 18 | 7520P001-60 | Air Shutter | 16 |
|
- | ||||
| 19 | 8112P107-60 | Manual, Use & Care | 01 |
|
- |
