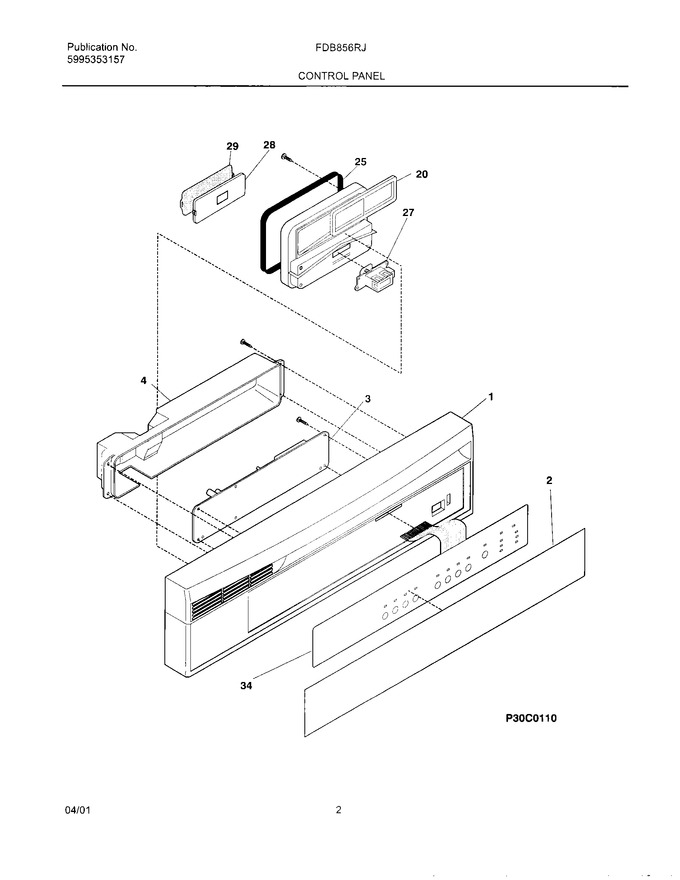

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154378402		Panel-control,almond		Appelez-nous	-
2	154378502		Insert-control Pnl,almond		Appelez-nous	-
3	154362807		Control				$ 96.86
4	154287802		Cover-control		Appelez-nous	-
20	154345101		Vapor Chamber Assy,w/ Vent Gasket				$ 101.50
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
34	154378601		Keypad,9pad		Appelez-nous	-
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
NI	5303322387		Screw,truss Head ,8,1.5`` ,stainless Steel				$ 2.54
NI	154392101		Harness-wiring		Appelez-nous	-
NI	154753101		Thermister   (Replaces: 154227501)			Immediately	$ 24.80
NI	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
