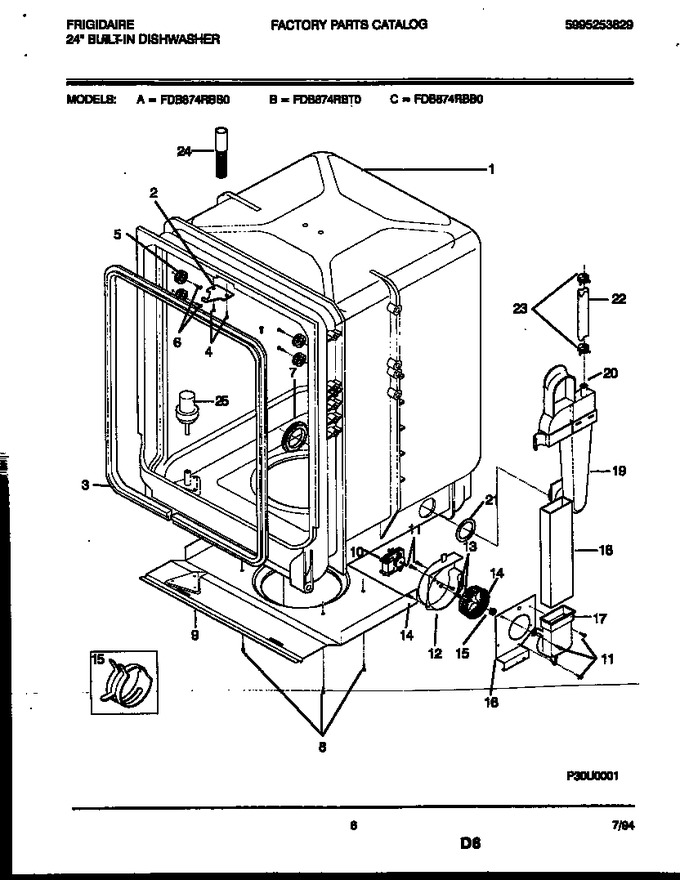

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303943090		Tub Assy W/gasket		Appelez-nous	-
2	5300809610		Strike Door		Appelez-nous	-
3	5300809611		Gasket Tub				$ 41.15
4	154151901		Screw-10-32 Taptitle/torx Hd		Appelez-nous	-
5	5304507405		Roller-tub (8)   (Replaces: 154080001)			Immediately	$ 25.79
6	5303943103		Screw W/washer,(8)			Immediately	$ 17.72
7	5300809724		Plastic Nut-blower		Appelez-nous	-
8	154041001		Screw-10 X 5/8``		Appelez-nous	-
9	5300809614		Pan-bottom		Appelez-nous	-
10	154184601		Motor-blower		Appelez-nous	-
11	154102801		Screw - 8 X 1/2`` (6)		Appelez-nous	-
12	154160101		Housing-blower		Appelez-nous	-
13	5300809731		Screw-8-32 X 3/8``(2)		Appelez-nous	-
14	08016015		Blade-blower				$ 13.05
15	5300809728		Clamp		Appelez-nous	-
16	154158701		Plate-blower Mounting		Appelez-nous	-
17	5300809729		Vent - Power Dry		Appelez-nous	-
18	154161701		Duct-blower		Appelez-nous	-
19	5300809616		Blower Inlet		Appelez-nous	-
20	5300809730		Cap		Appelez-nous	-
21	5300809618		Gasket Blower		Appelez-nous	-
22	5300809619		Tubing-water Inlet		Appelez-nous	-
23	5300807813		Clamp (2)		Appelez-nous	-
24	3100021801		Drain Hose				$ 73.00
25	154144301		Float		Appelez-nous	-
*10419	5303212479		Insulation-tub		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
