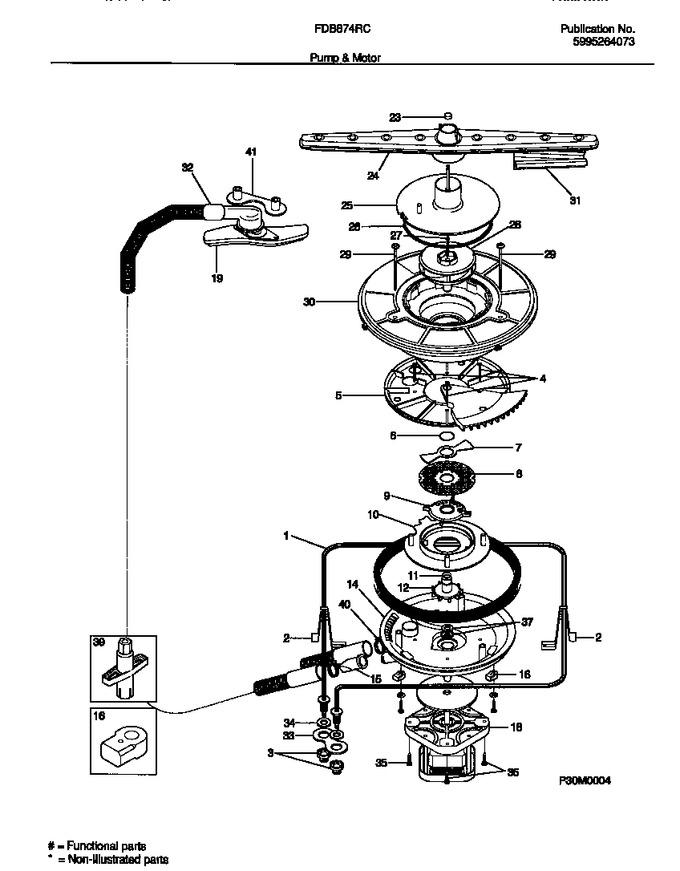

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809584		Heater				$ 222.23
2	5300809585		Bracket-heater		Appelez-nous	-
3	154106202		Nut,heater ,(2)   (Replaces: 154106201)			Immediately	$ 18.32
4	154086301		Screw-volute Cover, (4)		Appelez-nous	-
5	154084701		Plate-seperator		Appelez-nous	-
6	154085201		Ring-snap		Appelez-nous	-
7	154085001		Blade-macerator		Appelez-nous	-
8	154084901		Screen-macerator		Appelez-nous	-
9	154085101		Shroud		Appelez-nous	-
10	154084601		Cover-volute		Appelez-nous	-
11	5303351052		O-ring				$ 4.58
12	154085401		Impeller-lower		Appelez-nous	-
13	154085501		Gasket-pump				$ 103.48
14	154084501		Housing-pump		Appelez-nous	-
15	5300809937		Check Valve				$ 74.71
16	154084801		Pump-retainer, (4)		Appelez-nous	-
18	154086902		Motor-pump		Appelez-nous	-
19	154119401		Spray Arm-upper				$ 59.85
23	154190401		Nut-spray Arm				$ 21.00
24	154156601		Spray Arm-lower		Appelez-nous	-
25	154157401		Cover-filter Assy				$ 63.89
26	154086001		Seal-filter Housing				$ 18.17
27	154089201		Screw-upper Impeller		Appelez-nous	-
28	154085301		Impeller-upper				$ 35.96
29	154086201		Screw-filter Housing		Appelez-nous	-
30	154086101		Housing-filter				$ 36.33
31	5300809938		Shield-spray Arm, (2)				$ 37.05
32	154119301		Tube, Delivery		Appelez-nous	-
33	5300809587		Washer-heater		Appelez-nous	-
34	154064901		Washer-insulating				$ 8.14
35	154200901		Screw-motor Mtg				$ 14.39
37	5303943099		Seal Kit		Appelez-nous	-
39	154154801		Tool - 4 In 1		Appelez-nous	-
40	154611101		Clamp-hose   (Replaces: 154106801)				$ 12.05
41	154126401		Plate-mounting, Upper Spray Arm		Appelez-nous	-
*56568	5300810094		Screw-heater Bracket		Appelez-nous	-
*56569	154085801		Seal, Second Level		Appelez-nous	-
*56570	154149801		Lockwasher		Appelez-nous	-
*56571	5300808186		Clamp		Appelez-nous	-
