SELECT A DIAGRAM
02 - Console
03 - Detergent Cup Dispenser
04 - Door
05 - Tub
06 - Motor
07 - Frame
08 - Rack
SELECT A DIAGRAM
New Model Search:

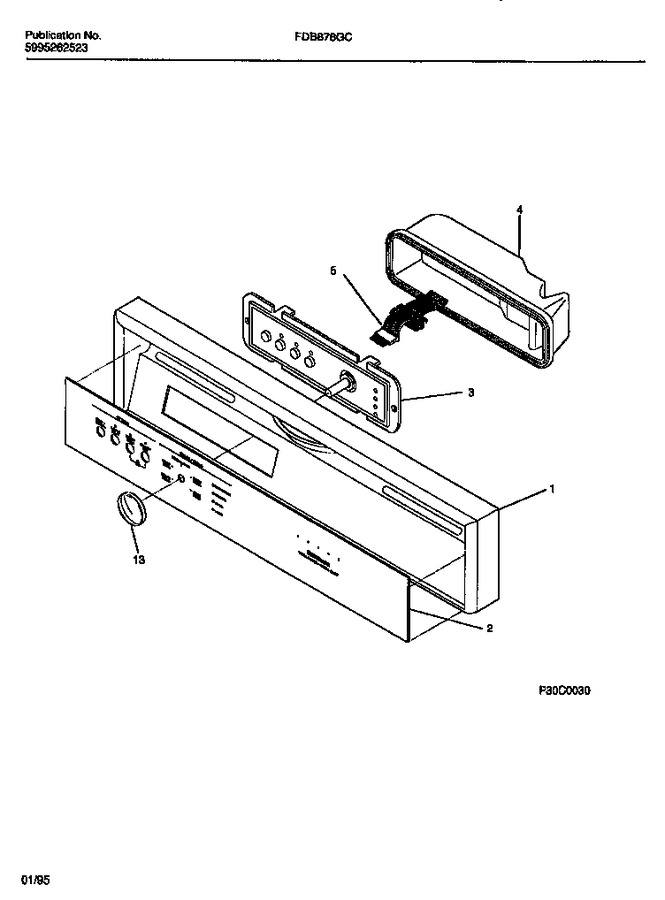

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154089601 | Control,panel-white |
|
- | |||||
| 2 | 154202401 | Insert, Control Panel, White |
|
- | |||||
| 3 | 154212901 | Control, Black |
|
- | |||||
| 4 | 154089701 | Cover, Control |
|
- | |||||
| 5 | 154087501 | Ribbon Cable |
|
$ 77.28 | |||||
| 13 | 154118804 | Knob, Selector, White |
|
- | |||||
| *86880 | 154166001 | Wiring Harness |
|
$ 115.00 |
