Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303943106 Lid-dispenser W/cam Spiral Pin And O-ring-white Appelez-nous -
2 5300805227 Cam Spring Special Order $ 32.50

3 5300806567 Cam Compr Spring Special Order $ 38.98

4 154041001 Screw Appelez-nous -
5 154183301 Bi, Metal Assy Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

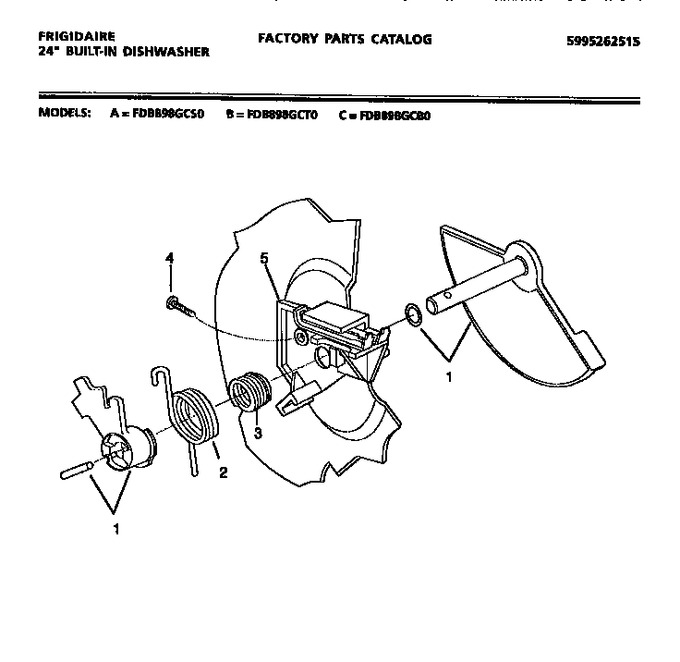

Diagram for FDB898GCS0
