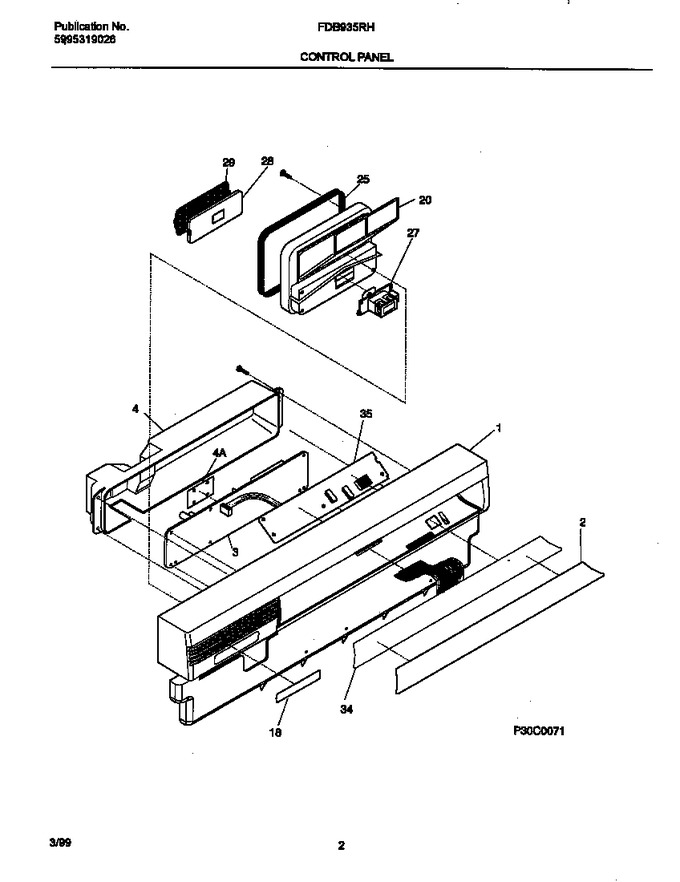

02 - Control Panel
03 - Door
04 - Tub
05 - Motor
06 - Frame
07 - Rack
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154253101 | Panel-control, White |
|
- | |||||
| 2 | 154254901 | Insert-control Pnl, White |
|
$ 120.59 | |||||
| 3 | 154319901 | Control |
|
$ 149.26 | |||||
| 4 | 154287901 | Cover-control |
|
$ 182.91 | |||||
| 4 | 154301301 | Cover-pc Protector |
|
- | |||||
| 18 | 154353401 | Nameplate Assy,white |
|
- | |||||
| 20 | 154283701 | Vapor Weldment Assy |
|
- | |||||
| 25 | 154303901 | Gasket-vent |
|
- | |||||
| 26 | 154229201 | Seal-chamber |
|
$ 12.81 | |||||
| 27 | 154226701 | Actuator,wax |
|
$ 65.46 | |||||
| 28 | 154226901 | Valve-vent |
|
- | |||||
| 29 | 154226401 | Gasket-valve |
|
$ 51.14 | |||||
| 34 | 154322801 | Keypad, 12pad |
|
$ 85.63 | |||||
| 35 | 154227901 | Board-display |
|
- | |||||
| *58720 | 154200401 | Screw, 6-10 X 3/8, Pan Plask |
|
$ 8.56 | |||||
| *58721 | 154283901 | Screw,8-10 ,3/8 Phillips |
|
$ 7.56 | |||||
| *58723 | 154352601 | Harness-wiring |
|
- |
