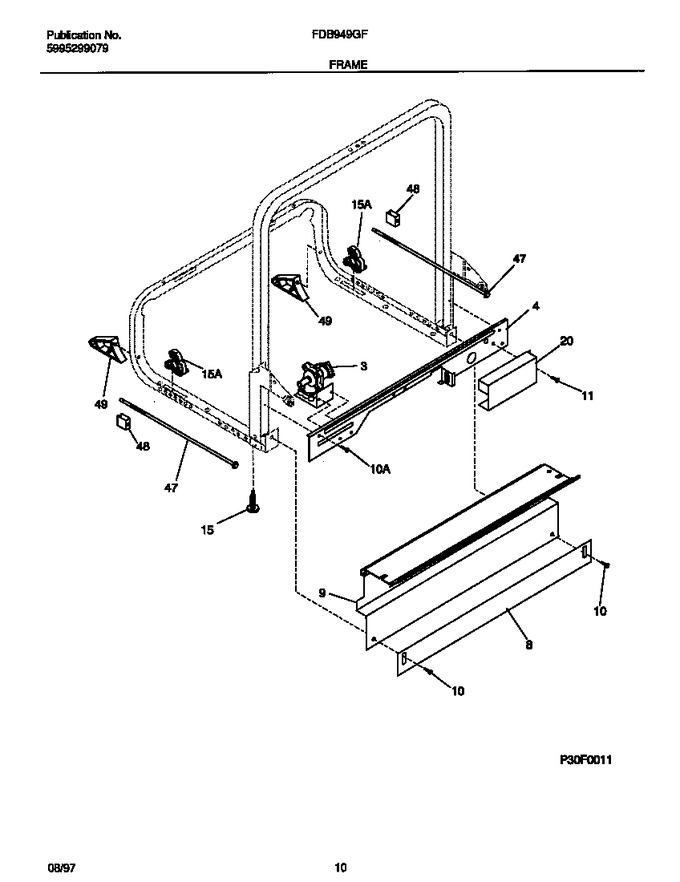

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 154637401 | Valve-water (Replaces: 154219601) |
|
Immediately | $ 21.36 | ||||
| 4 | 5304508587 | Brace-front (Replaces: 154208701) |
|
$ 28.92 | |||||
| 8 | 154745503 | Toeplate-adjustable (Replaces: 154227002) |
|
Immediately | $ 15.75 | ||||
| 10 | 154419403 | Screw,8a X .375`` (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 10 | 154041001 | Screw,plask 1 ,10-10 X 9/16 |
|
- | |||||
| 11 | 154294701 | Screw, 7 Plas .375 |
|
$ 9.22 | |||||
| 20 | 154209601 | Cover-junction Box |
|
$ 39.80 | |||||
| 47 | 154227301 | Rod, Rear Leg |
|
- | |||||
| 48 | 154227201 | Clip, Rear Leg |
|
- | |||||
| 49 | 154227401 | Guard-motor |
|
- | |||||
| *54420 | 154290305 | Baffle-sound |
|
- | |||||
| *54421 | 154200601 | Screw-10-16 X 3/8 |
|
$ 7.98 | |||||
| *54422 | 154290401 | Insulation-baffle |
|
- | |||||
| *54423 | 5300807270 | Screw |
|
$ 6.72 | |||||
| *54424 | 5300807373 | Washer |
|
- | |||||
| 15A | 154210901 | Screw-leveling |
|
- | |||||
| 15A | 154227101 | Leveling-rear |
|
$ 31.71 | |||||
| 15B | 154286801 | Ring-retaining, Adj Leg (not Illustrated) |
|
- | |||||
| 15B | 5300808749 | Screw, C.r. Truss, 8 .625 (not Illustrated) |
|
- | |||||
| 9A | 5304501484 | Toeplate (Replaces: 154224702) |
|
Immediately | $ 51.08 | ||||
| 9B | 154249301 | Insulation, Kickplate (not Illustrated) |
|
- |
