SELECT A DIAGRAM
01 - Door
02 - Oven

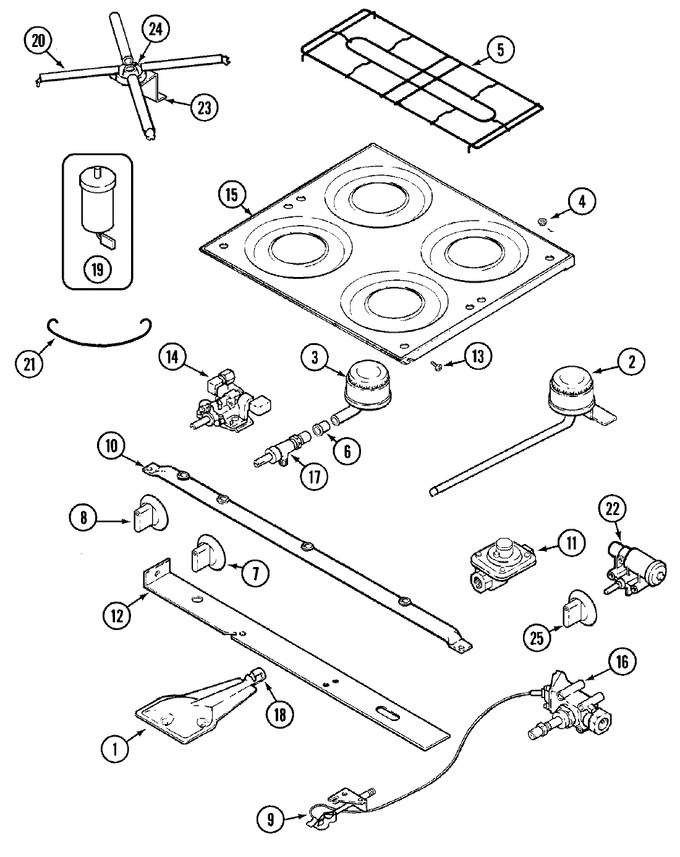

03 - Top & Burner Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3403W025-45 | Oven Burner Assy. | 10 |
|
- | ||||
| 2 | 7505P153-60 | Burner, Assy R.r. | 10 |
|
- | ||||
| 2 | 7505P154-60 | Burner, Assy L.r. | 10 |
|
- | ||||
| 3 | 7505P151-60 | Burner, Assy R.f. | 10 |
|
- | ||||
| 3 | 7505P152-60 | Burner, Assy L.f. | 10 |
|
- | ||||
| 4 | Y8007P02060 | Grommet | 10 |
|
$ 5.88 | ||||
| 5 | 7518P012-60 | Grate, Top | 10 |
|
- | ||||
| 6 | 7214P015-60 | Insert, Burner | 10 |
|
- | ||||
| 7 | 7733P072-60 | Knob, Valve | 10 |
|
- | ||||
| 8 | 7731P109-60 | Knob, Thermostat | 10 |
|
- | ||||
| 9 | 1555261K | Nut & Ferrule (3/16``) | 10 |
|
- | ||||
| 9 | 968-143 | Pilot, Oven | 10 |
|
- | ||||
| 10 | 7513P096-60 | Pipe, Manifold | 10 |
|
- | ||||
| 11 | 7507P047-60 | Plug, Pipe | 10 |
|
- | ||||
| 11 | 7510P043-60 | Regulator, Pressure | 10 |
|
- | ||||
| 11 | 7507P083-60 | Fitting, Half Union | 10 |
|
- | ||||
| 12 | 3807F320-45 | Support, Oven Burner | 10 |
|
- | ||||
| 13 | 8003P008-60 | Bumper | 10 |
|
- | ||||
| 14 | 3414F101-44 | Tubing (1/4``-od X 41``) | 10 |
|
- | ||||
| 14 | 7507P049-60 | Flange, T Stat | 10 |
|
- | ||||
| 14 | 7515P029-60 | Thermostat | 10 |
|
- | ||||
| 14 | 1555280K | Nut & Ferrule 1/4`` Kit | 10 |
|
- | ||||
| 14 | 3414F077-44 | Tubing, 3/16 X 41.5`` | 10 |
|
- | ||||
| 14 | 1555222 | Nut, Loxit (3/16``) | 10 |
|
- | ||||
| 15 | 2001F108-81 | Top, Main (wht) | 10 |
|
- | ||||
| 16 | 1555279 | Nut, 1/4`` Loxit | 10 |
|
- | ||||
| 16 | 7501P056-60 | Valve, Oven | 10 |
|
- | ||||
| 17 | 7502P181-60 | Valve, Top Burner (5200) | 10 |
|
- | ||||
| 18 | 3411F003-34 | Mixer, Air | 10 |
|
- | ||||
| 19 | 7432P077-60 | Igniter, Top | 10 |
|
$ 26.53 | ||||
| 19 | 7104P002-60 | Fastener, Push Ring Rv | 10 |
|
- | ||||
| 20 | 7506P067-60 | Flash Tube | 10 |
|
- | ||||
| 21 | 7112P068-60 | Clip | 10 |
|
- | ||||
| 22 | 74002413 | Igniter | 10 |
|
$ 160.72 | ||||
| 22 | 5111A719-60 | Wire, Igniter | 10 |
|
$ 5.85 | ||||
| 23 | 3807F462-45 | Support, Top Burner | 10 |
|
- | ||||
| 24 | 7506P066-60 | Lighter Cup | 10 |
|
- | ||||
| 25 | 7733P052-60 | Knob, Valve | 10 |
|
- | ||||
| 26 | 8112P118-60 | Manual, Use & Care | 10 |
|
- | ||||
| 27 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
