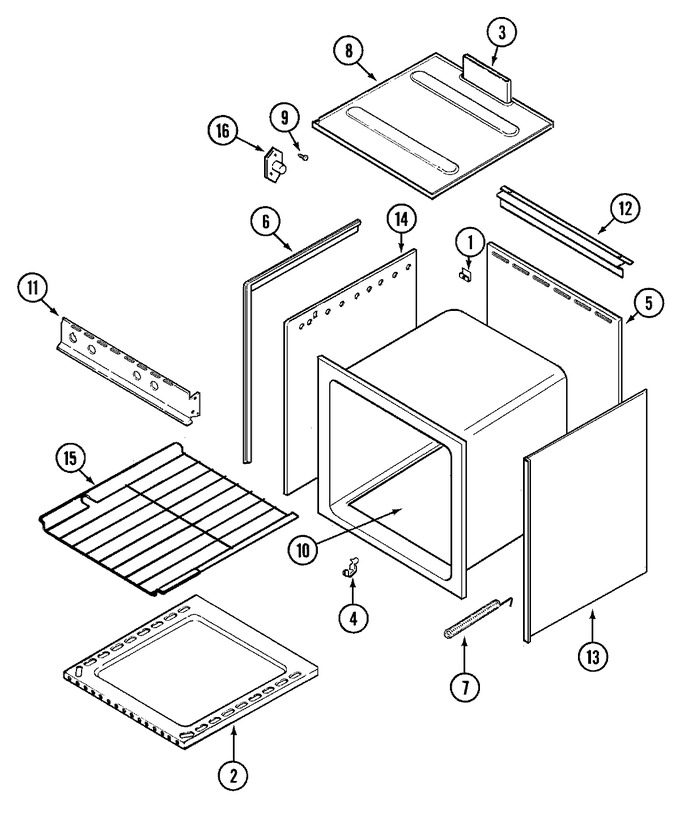

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7112P071-60 | Clip, Main Top Rear | 01 |
|
- | ||||
| 2 | 2205F016-19 | Bottom, Oven | 01 |
|
- | ||||
| 2 | 7112P065-60 | Clip, Oven Bottom | 01 |
|
- | ||||
| 2 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 01 |
|
$ 6.47 | ||||
| 3 | 4006W075-80 | Flue Box Assy | 01 |
|
- | ||||
| 3 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 01 |
|
$ 6.47 | ||||
| 4 | 7112P053-60 | Clip, Capillary | 01 |
|
- | ||||
| 5 | 4002F109-51 | Back, Main | 01 |
|
- | ||||
| 5 | 74001747 | Screw | 01 |
|
- | ||||
| 5 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 6 | 3608F013-70 | Trim, Left Black | 01 |
|
- | ||||
| 6 | 3608W025-70 | Trim Right | 11 |
|
- | ||||
| 6 | 3608F014-70 | Trim, Right Black | 01 |
|
- | ||||
| 6 | 3608W024-70 | Trim Left | 11 |
|
- | ||||
| 7 | 7803P052-60 | Spring, Oven Door | 01 |
|
- | ||||
| 8 | 4011F153-51 | Bottom, Burner Box | 01 |
|
- | ||||
| 9 | 7101P301-60 | Screw No.6 X 1/2 | 01 |
|
- | ||||
| 10 | 4011F125-51 | Bottom, Main | 01 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P064-60) | 01 |
|
Immediately | $ 6.85 | |||
| 11 | 2616F089-70 | Panel, Manifold | 01 |
|
- | ||||
| 12 | 74002809 | Shield, Deflector Flue (blk) | 01 |
|
- | ||||
| 13 | 4016F036-51 | (right) | 01 |
|
- | ||||
| 14 | 4016F035-51 | Side Body (left) | 01 |
|
- | ||||
| 15 | 7801P027-60 | Rack | 01 |
|
- | ||||
| 16 | 7103P109-60 | T-nut (rv Hinge) | 01 |
|
- |
